Kaypro Robie
My Kaypro Robie (original design, SA455 drives, 230V), #252-887

Personally, I find the Kaypro Robie very well thought-out and ergonomic. The screen is at the right angle, the case is narrower - you have more space on the desk - and the two floppy drives are where they don't bother. Perfect for a desktop computer. If it hadn't been for the problem with the Drivetec drives, the Robie could have been a big hit.

According to Rick Gordon [1], the design was created by Andrew Kay's daughter Janice Batter Kay, an architect. She has also designed several buildings for Kaypro.

First Appraisal

Unpacked, CRT is fine, nothing is rattling, no loose parts. Thank God. A quick look inside was quite positive, I've seen worse.

Considering that the Robie was rescued (by the seller) from the bulky waste, it actually looks very good. There are already a few worn spots on the corners and edges. I find it much more surprising that the mainboard and the CRT have not been damaged.

So I plugged in another keyboard, the power cord and switched on ... No bang, no smells but no picture either, oops! Drive A: lit up as usual and the fan spun quietly. Since I had turned the brightness control just before, I turned it back and forth again and, lo and behold, a stable picture appeared.

Kaypro Robie ROM

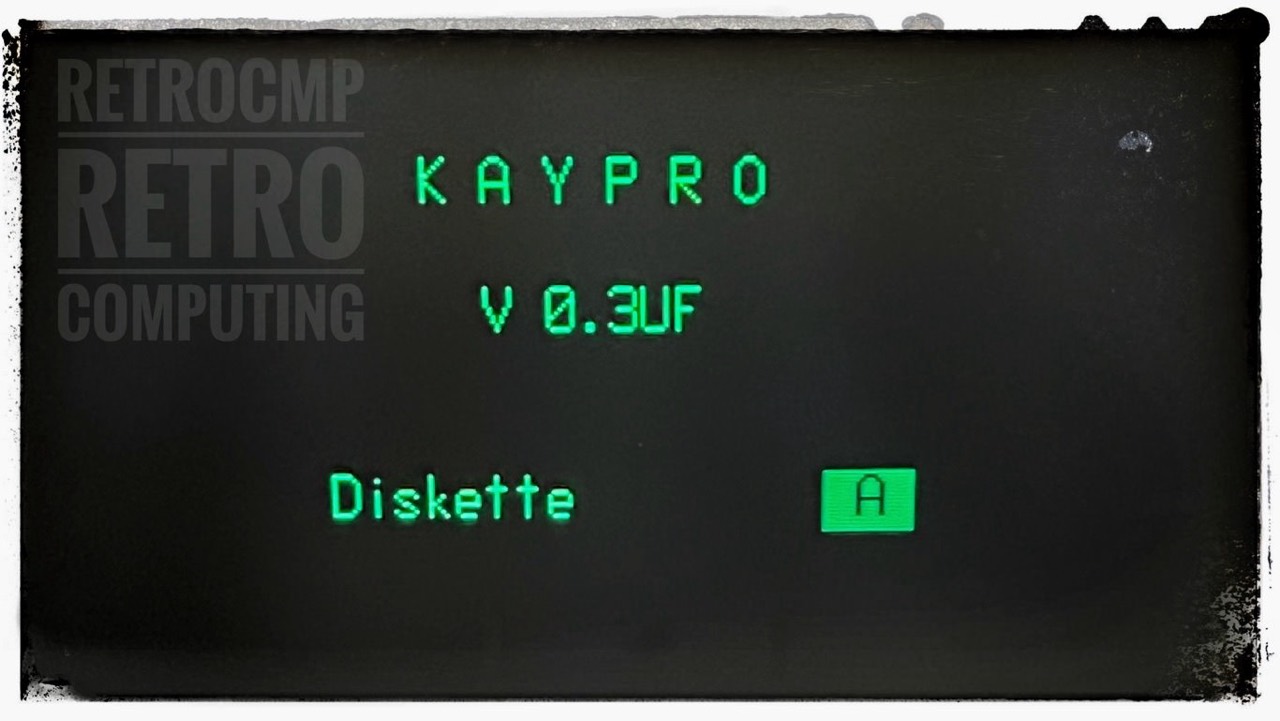

My Kaypro Robie with an odd ROM

I had already reckoned with a different ROM, after all, other drives are used. But this ROM version is completely unknown to me, never seen before

But at least the Robie works. Then I connected two known working floppy drives, installed a new ROM (4/84, 81-292A) and created an appropriate boot disk. Second try and the Robie starts perfectly. I can't believe it. I use CP/M 2.2F or G.

Better ROM

Monitor ROM

Since I am very curious by nature and the UNIVERSAL BOARD of the Robie is designed for an 8K ROM, I quickly burned the Micro Cornucopia PRO 84-52, PRO-884 MAX and Super MAX 2.7 ROM onto different 2764 EPROMs and tested them. All three work flawless. Currently I use the original PRO-884 MAX v1.0 by L. Stump and D. Cotant; not the Super MAX.

Kaypro Robie Super MAX 2.7 ROM

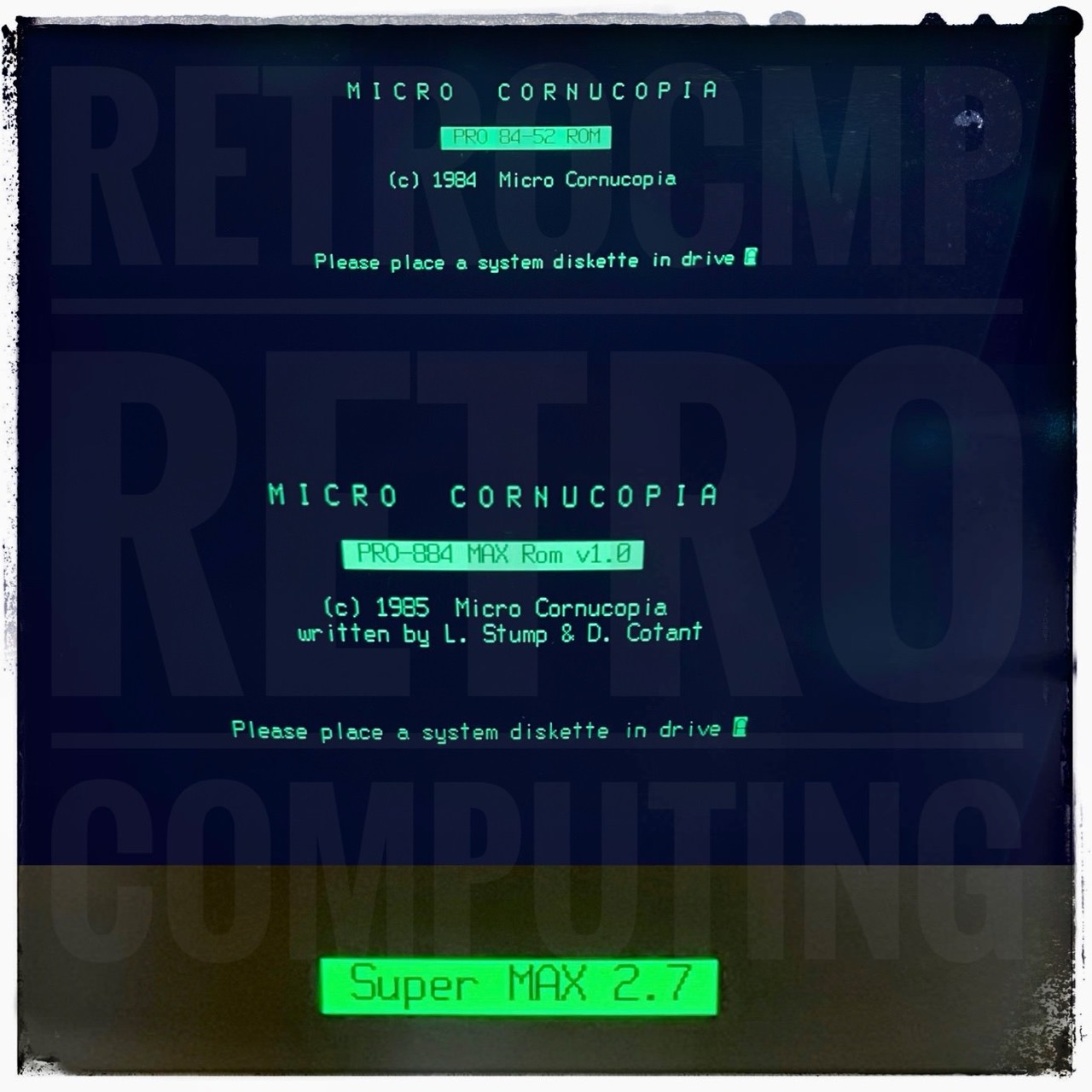

Micro C: PRO-884, PRO-884 Max, SuperMAX 2.7 ROM

I can't quite figure out the Super MAX 2.7. It is originally from the Don Maslin archive and is specifically labeled "Kaypro 4/84 monitor Micro C Super MAX 2.7 (884max.rom)". But in the ROM itself there is not a single reference to Micro Cornucopia; lack of space?

Kaypro Robie Super MAX 2.7 ROM

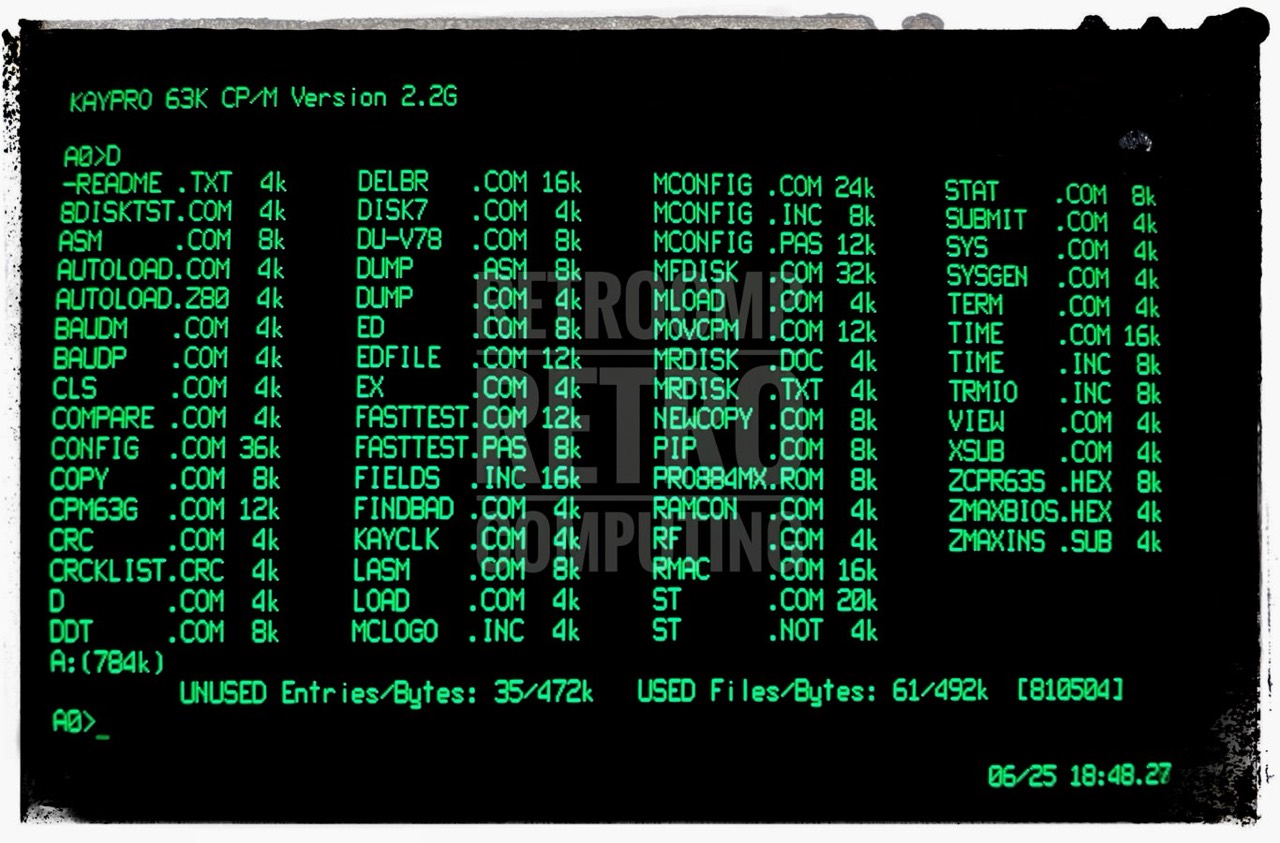

Micro C PRO-884 MAX & CP/M 2.2G & status line

Character Generator ROM

According to the manual, an 81-235 should actually be installed in the Robie. In fact, however, a 81-278-A is installed, as it is otherwise found in the Kaypro 10 ('83). By the way, the 81-187 and the 81-235 are identical.

Better Disk Drives

Since the Robie no longer has the two original Drivetec HD drives, as already mentioned, I installed two NOS 1M/784K drives (Panasonic JU-475-5 AEG) instead. Both work perfectly with the Micro C Pro-884 Max ROM. Note: The Panasonic JU-475-5 is a real dual speed drive. You can use it with a fixed speed of 300 or 360 RPM. In this case 300 RPM.

Panasonic JU-475-5 AEG
Panasonic JU-475-5 AEG (2x 800 KByte)

Later I changed drive B: for a Gotek with FlashFloppy.

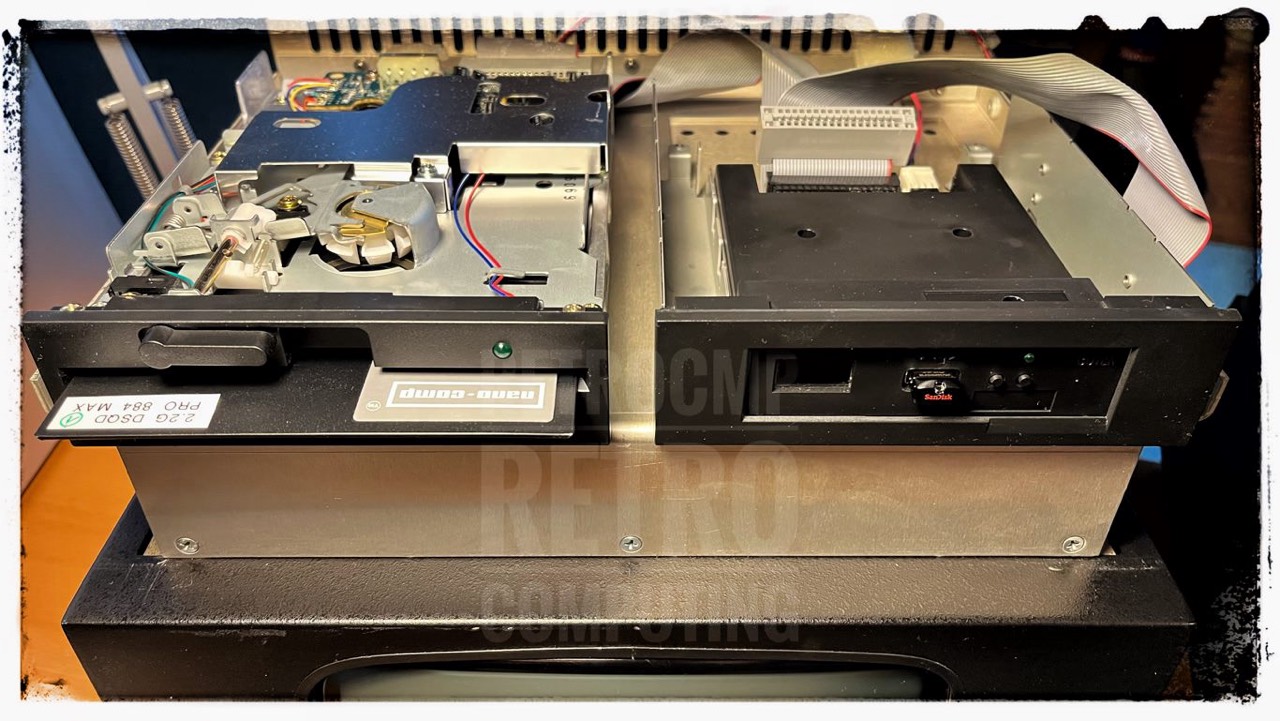

Kaypro Robie with a Gotek and FlashFloppy
Kaypro Robie with a Gotek & FlashFloppy

Mainboard

The mainboard looks flawless and the battery does indeed still have a voltage of 1.8 V. However, the battery has already been replaced once; recognisable from the solder joints on the back. A new one has already been ordered. I almost forgot to mention, really all ICs are socketed! Very good.

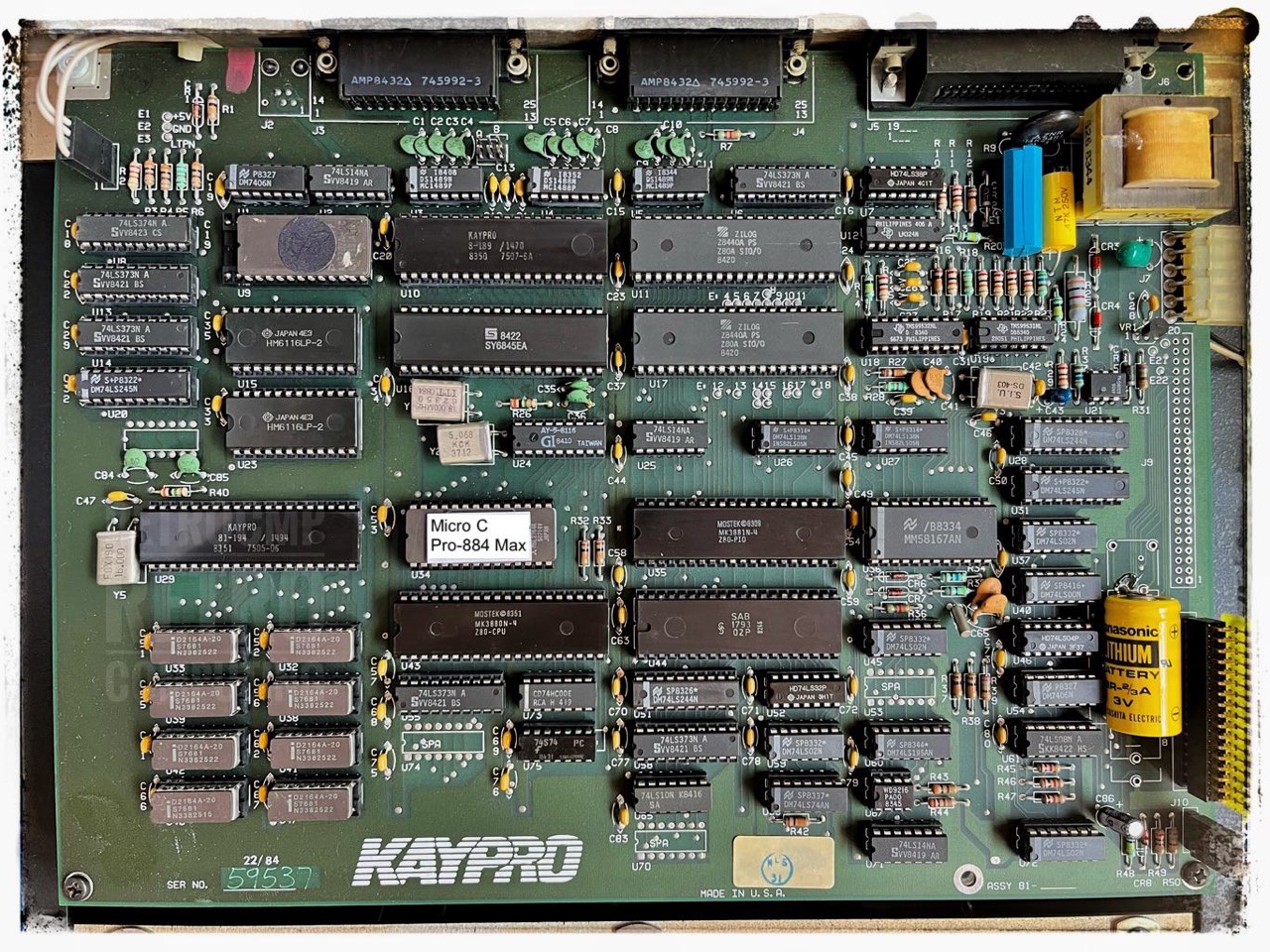

81-184 UNIVERSAL BOARD
81-184 UNIVERSAL BOARD

The exact designation of the mainboard can be found on the back of the PCB (solder side). In this case, it is printed there: P/N 81-184 REV A1; not 81-296.

This is correct. The PCB part number is 81-184 and the mainboard ASSY is 81-296. But the ASSY is not printed here, although it is provided with placeholder.

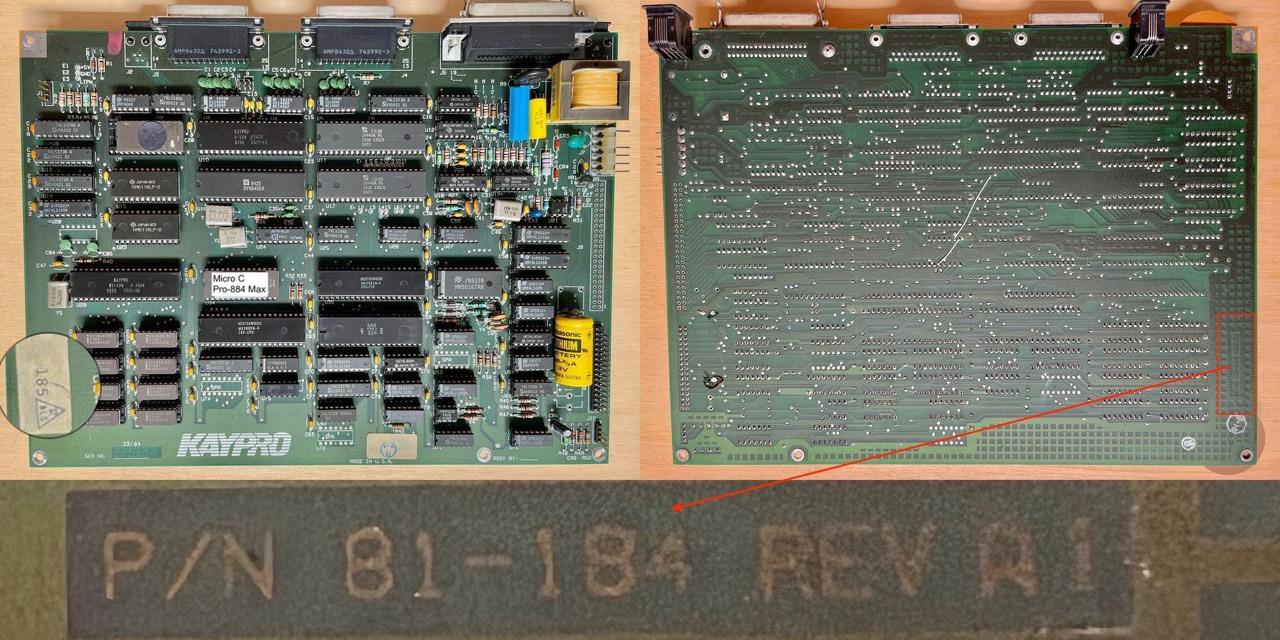

PCB: P/N 81-184 REV A1

The Inside

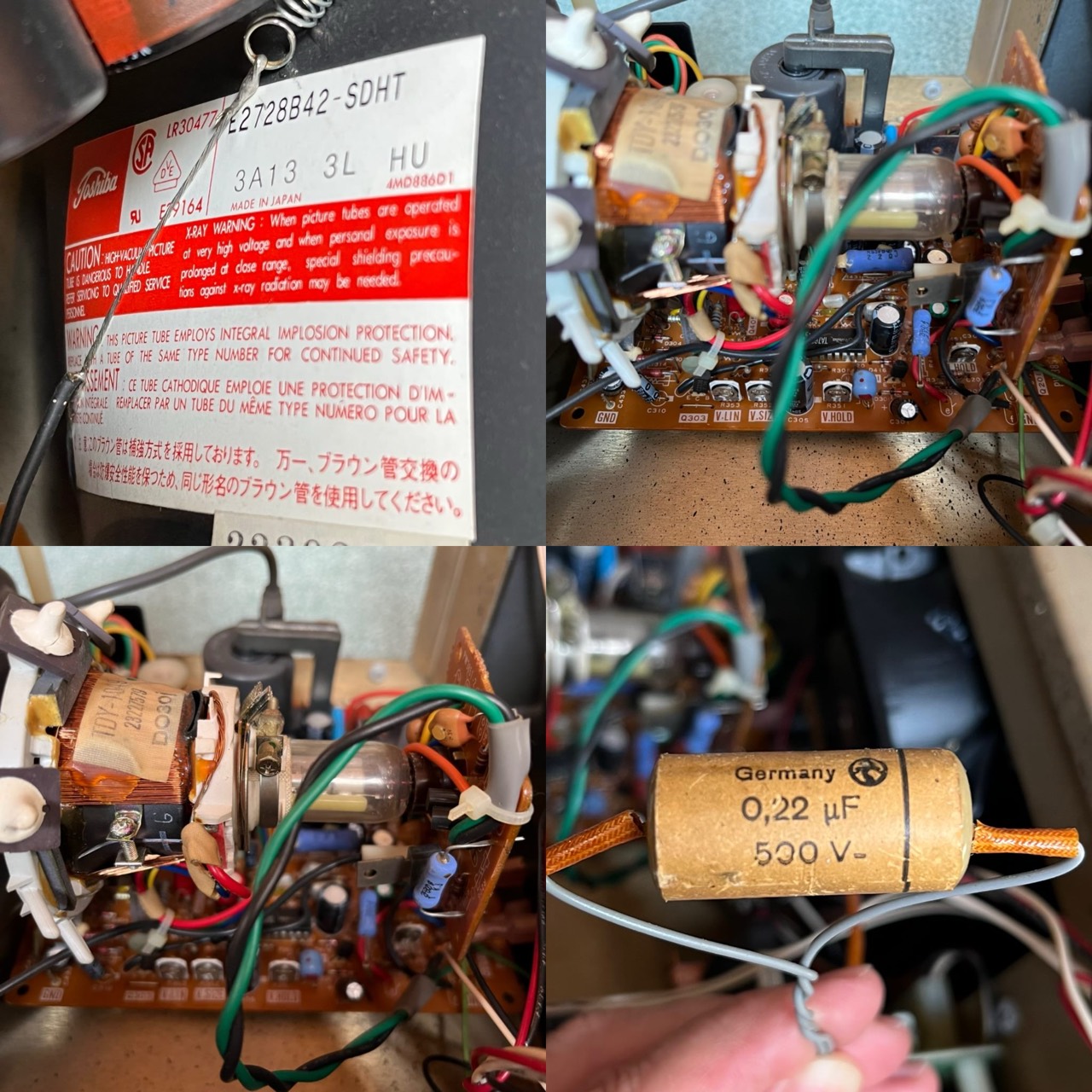

Inside the Robie
Inside the Robie (1)

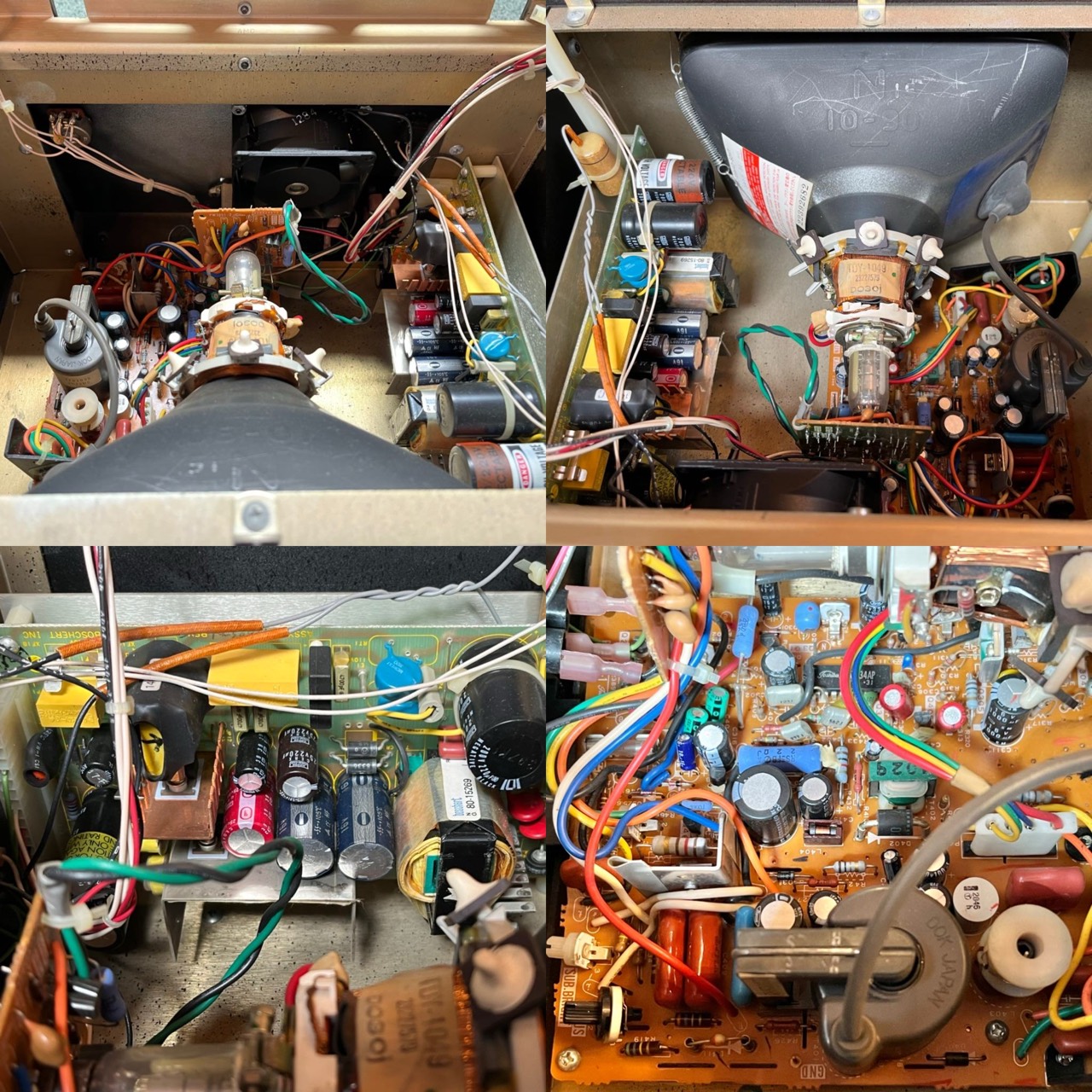

Inside the Robie
Inside the Robie (2)
Inside the Robie

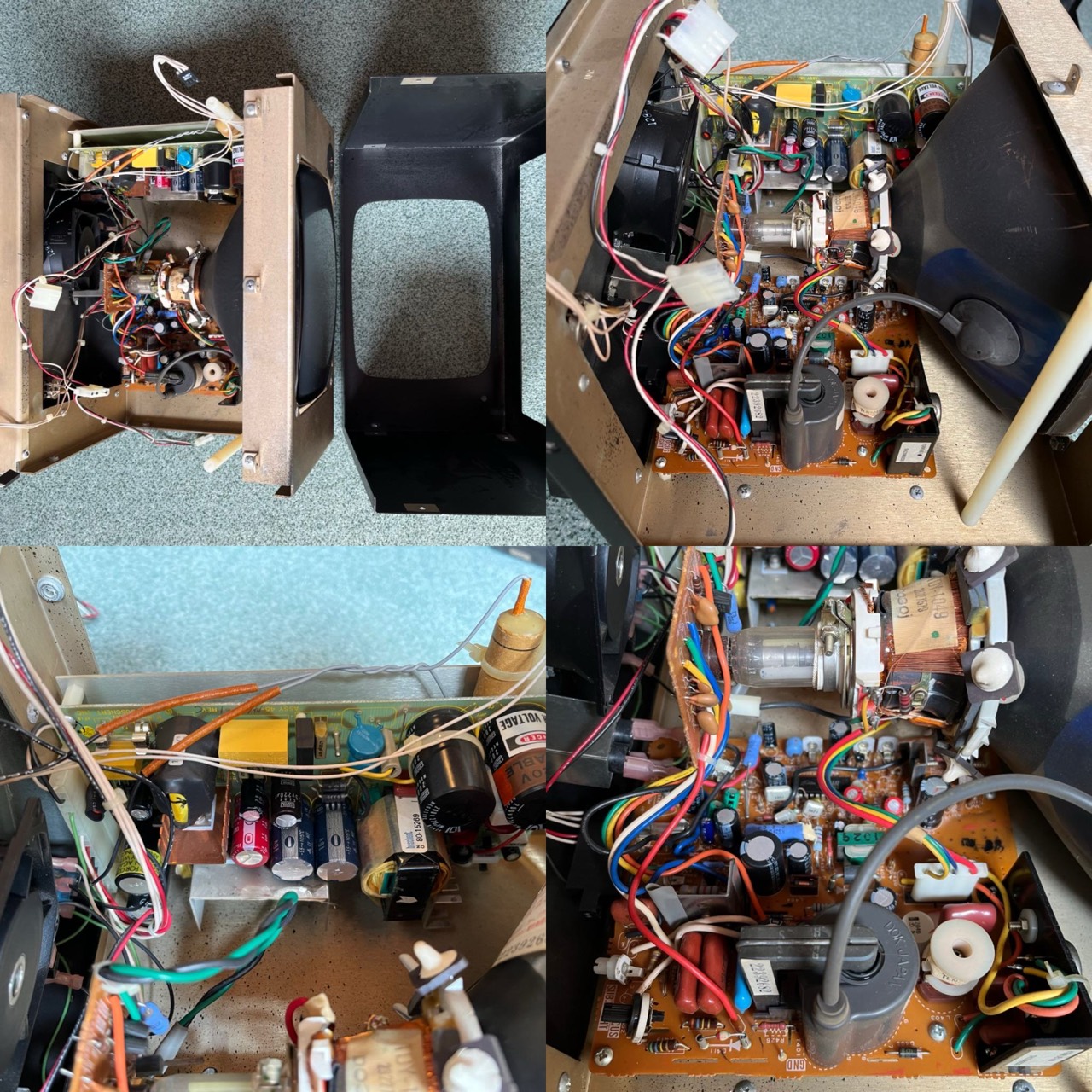

Inside the Robie (3)

I have replaced the three RIFA interference suppression capacitors. Finally, I checked the voltages of the PSU. All three are within their target range. I once bought a complete harness for the Kaypro on eBay. It's very helpful. This way I can easily check a power supply unit outside the Kaypro.

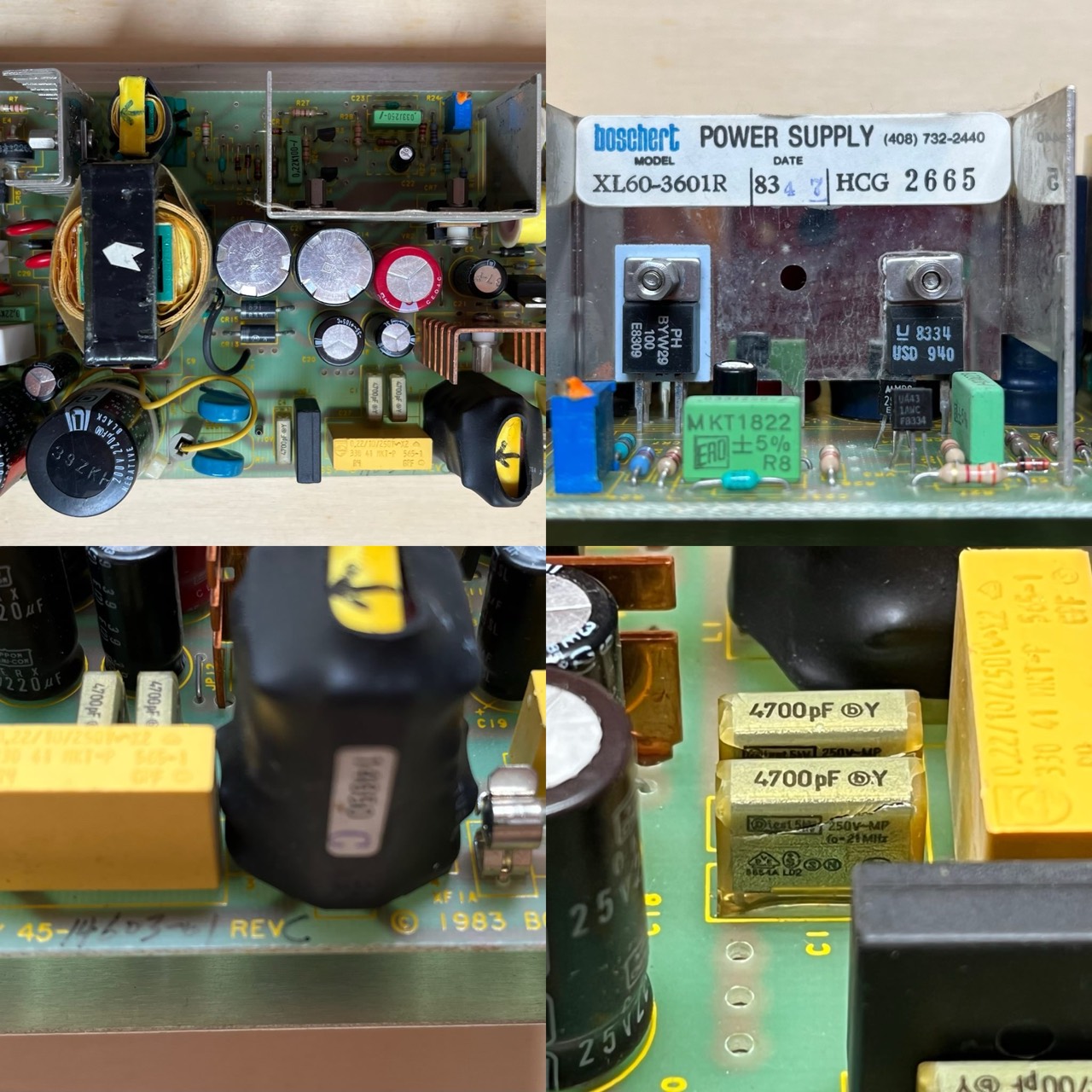

Inside the Robie
Inside the Robie (4)

The interior of the Robie is completely unspectacular. Nothing that is not already familiar from the other Kaypro's.
