Last revision of this page: January 25, 2025

Collection No. 0 - Thomas Brase

... in progress ...

Kaypro II ........ #004-037

Please follow this link.

Kaypro II ........ #010-408

Kaypro II ........ #034-126

Build date: The most recent TTL chip is dated 8250. The Z80B CPU (6 MHz) is of course newer (8337), because the mod was done later.

Kaypro collection 0
Kaypro II, 81-110-B1, #034-126 - [Thomas Brase]

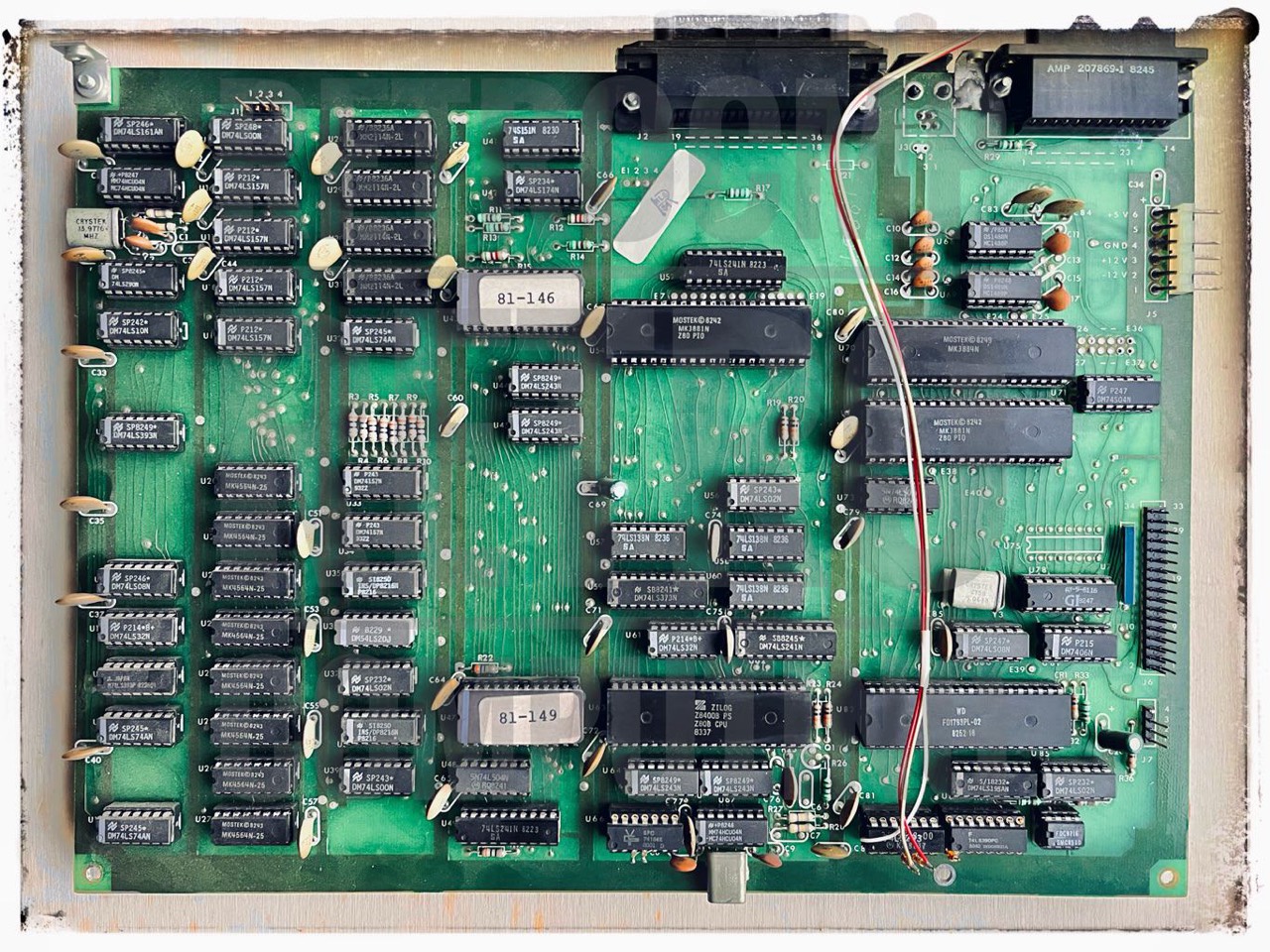

Following the known Kaypro II mods. Above the speed mod: 2,5 or 5 MHz. Below left the CAS/MUX mod and below right the drive fix mod.

The Kaypro 2 to 4 mod is not performed. This Kaypro II uses still two single-sided, full-high Tandon TM-100-1A drives.

Kaypro collection 0
Kaypro II, #034-126 - [Thomas Brase]

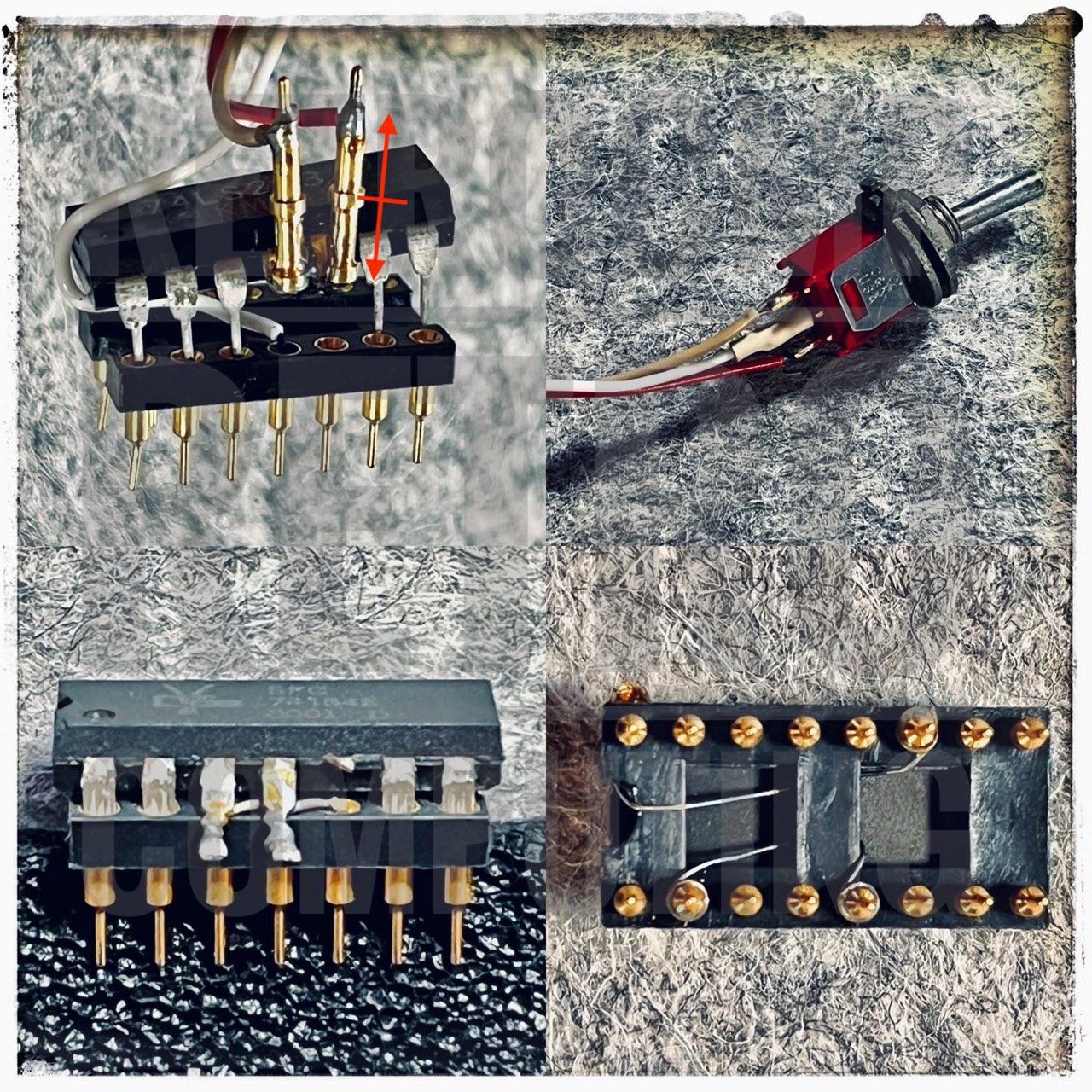

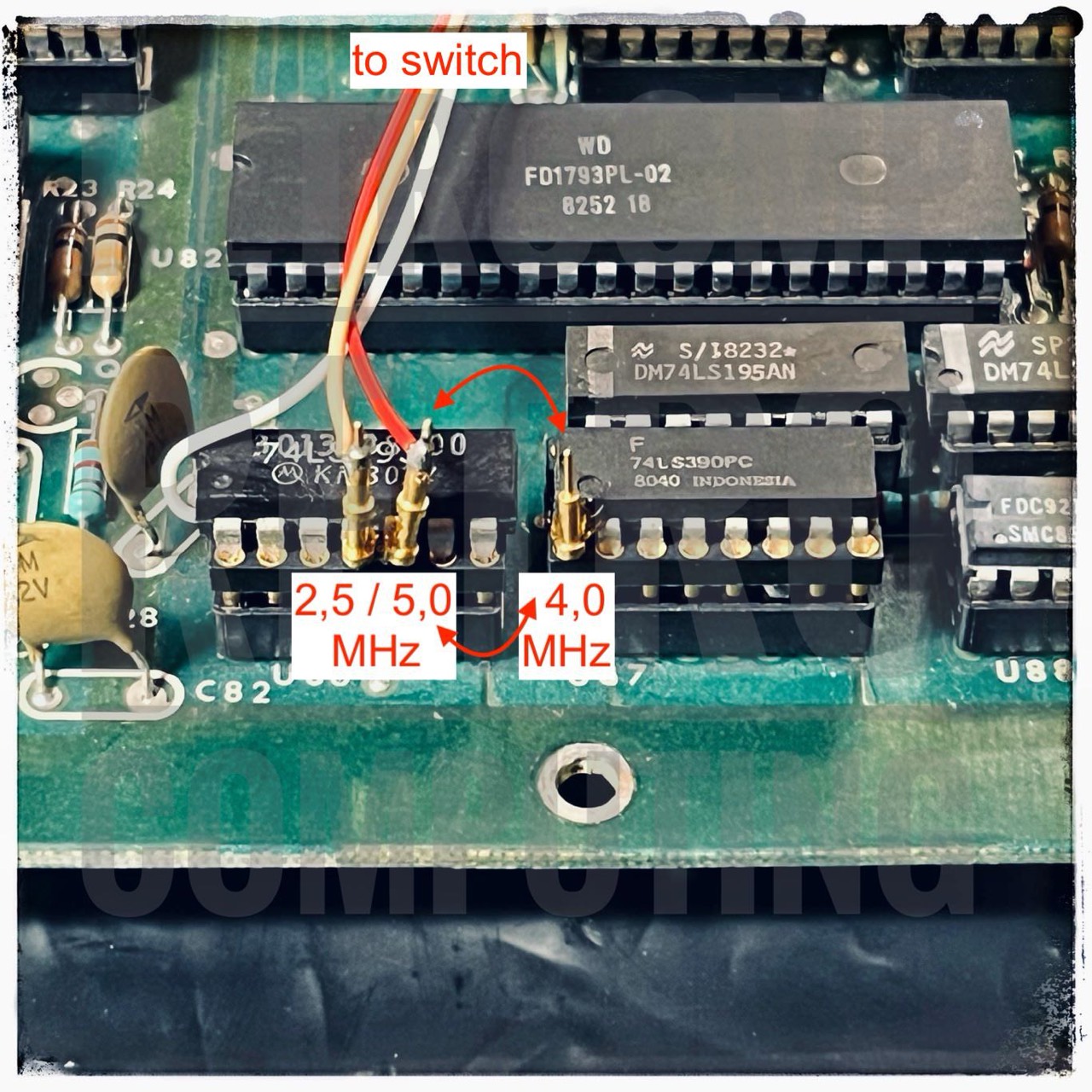

The builder of this speed mod was just brilliant. By simply plugging it in, you can switch between 5 and 4 MHz. Much better than the construction in the Micro Cornucopia!

Kaypro collection 0
Changing between 5 & 4 Mhz - [Thomas Brase]

Kaypro II ........ #034-644

Kaypro 4/84 ...... #116-866

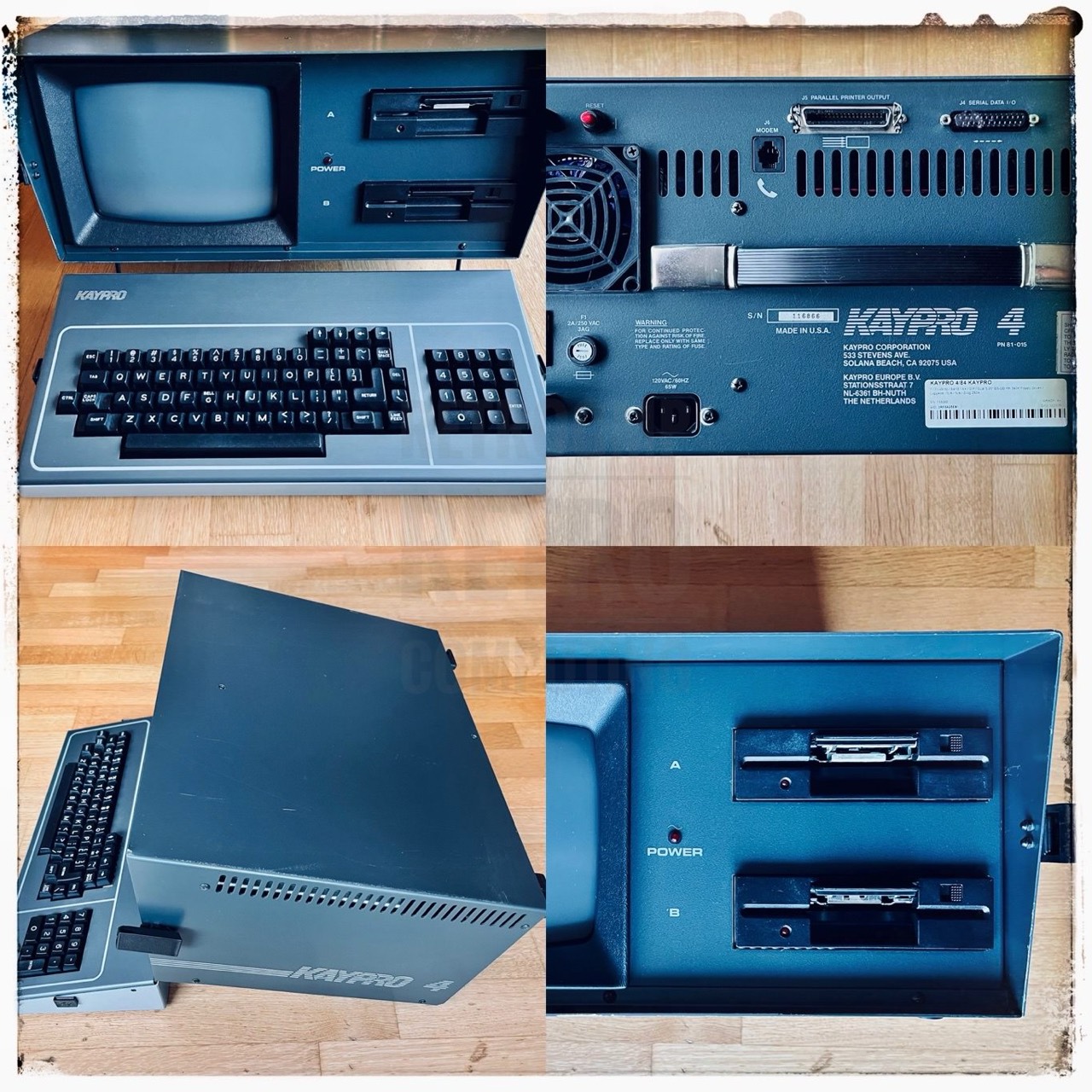

This Kaypro 4/84 looks almost flawless on the outside. The keyboard has apparently never been used. Only the two Epson drives are not in order; I have replaced them with two Toshiba 5401 and 5426. This Kaypro 4/84 also runs perfectly with a hard disk!

Kaypro collection 0
Kaypro 4/84, #116-866 - [Thomas Brase]

Kaypro 10('83) ... #097-876

Kaypro 10('83) ... #111-192

Robie ............ #252-887

Please follow this link.

Collection No. 1 - Chris Singleton

Courtesy of Chris Singleton, Duncan, British Columbia, Canada / [cchhrriiss11] from "Vintage Computer Federation Forums".

Kaypro collection 1
Collection No. 1 - [Chris Singleton]

Kaypro 4X ........ #205-824

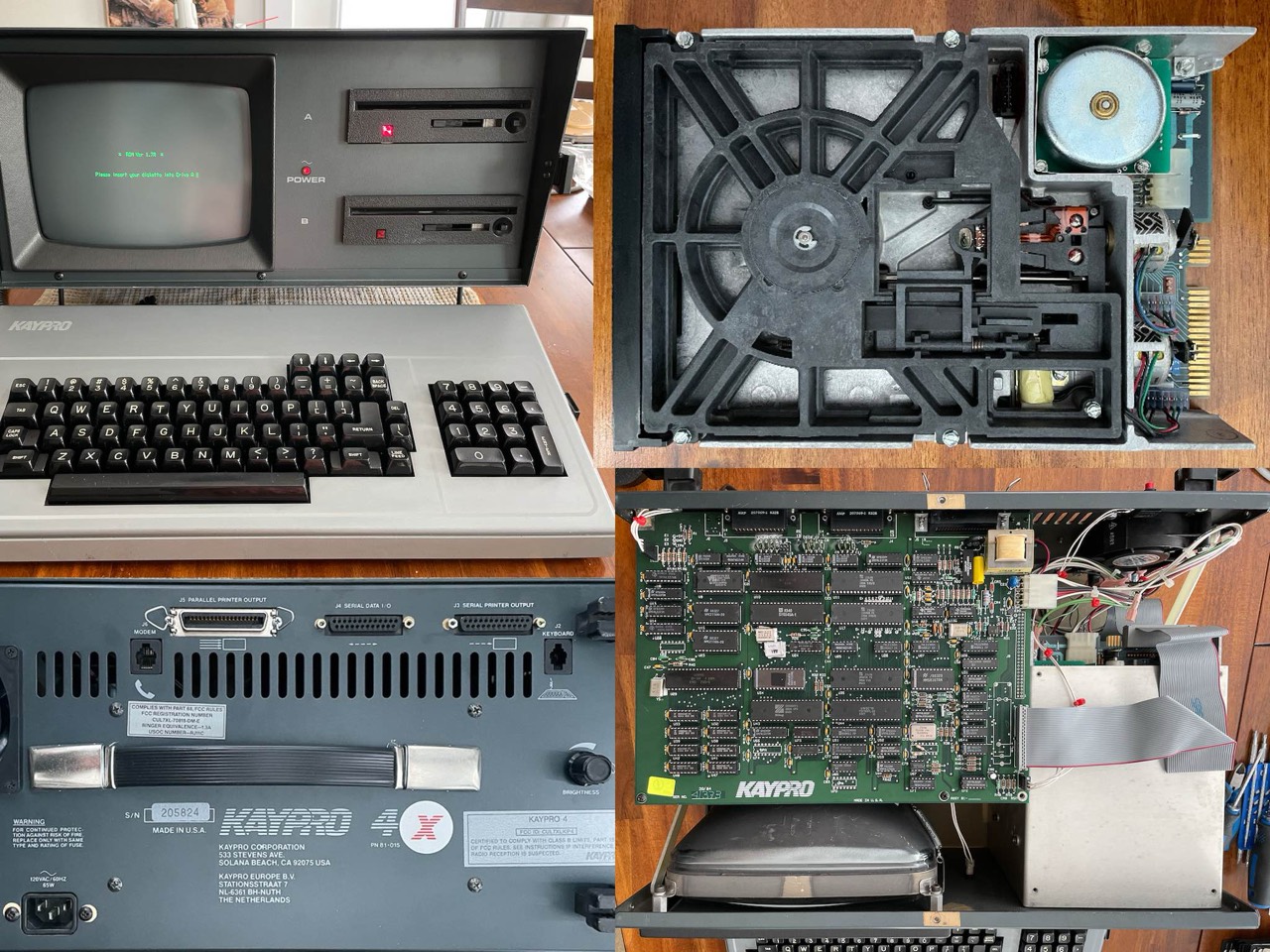

In the following picture you see a Kaypro 4X with two (working) 2.6 MByte Drivetec drives. This is the ONLY Kaypro 4X I have seen on the internet so far.


----------------------------------------------
Model   CP/M    MB      ROM       ROM
        version version revision  version
----------------------------------------------
4X      2.2G    81-297  81-326-E  1.7R
4X      2.2H    81-297  81-326-E  1.7R
----------------------------------------------
I do not know the correct CP/M version.
----------------------------------------------
Kaypro collection 1
Kaypro 4X, #205-824 - [Chris Singleton]

Kaypro 10's

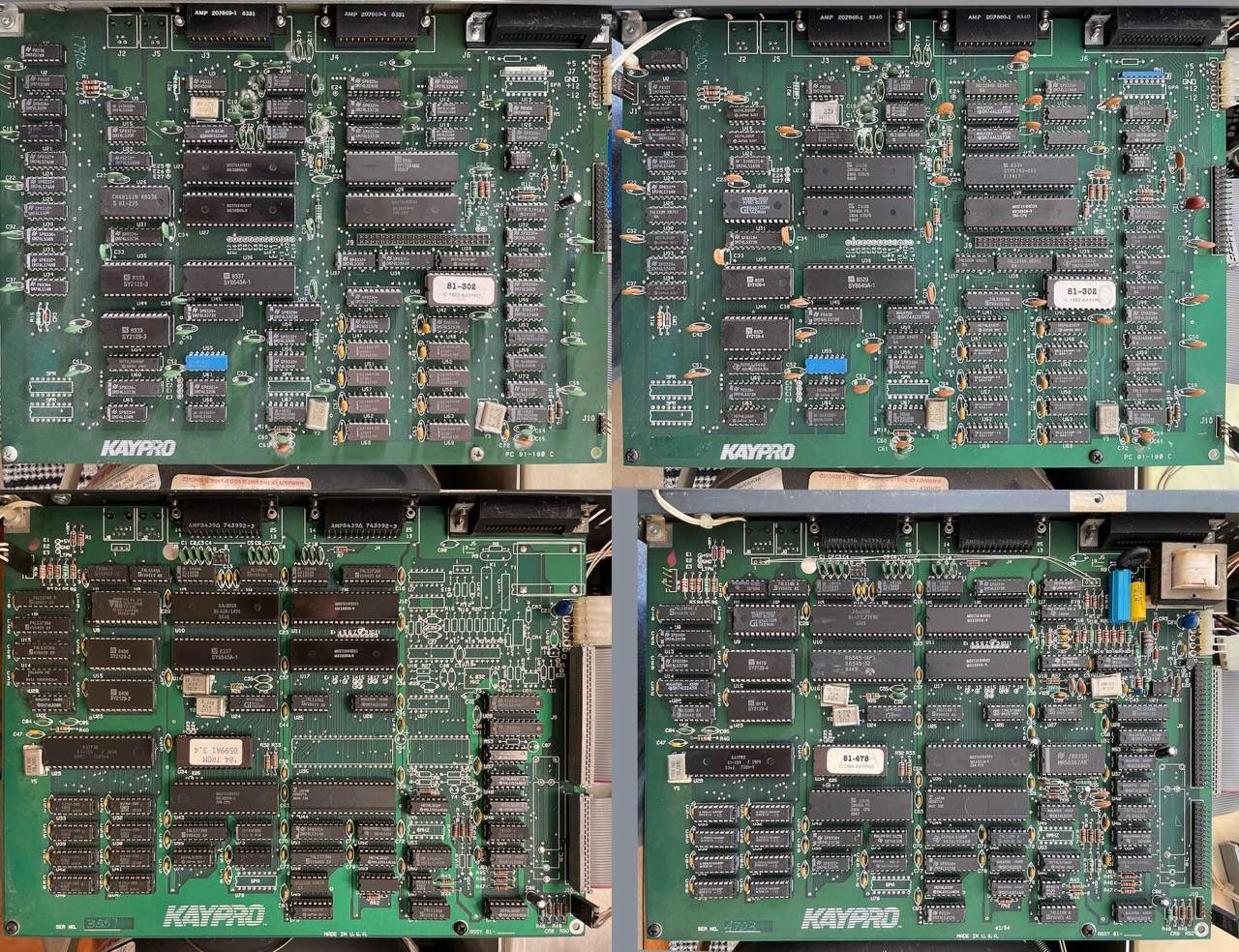

In the following picture you can see the mainboards of four Kaypro 10. The top row are 10 ('83) models with the mainboard 81-180C. The row below are 10 ('84) models with the universal mainboard 81-582.


----------------------------------------------
Model   CP/M    MB      ROM       ROM
        version version revision  version
----------------------------------------------
10      2.2G    81-180  81-302-C  1.9E
10      2.2UL   81-582  81-478-A  2.01
----------------------------------------------
Kaypro collection 1
Kaypro 10 - [Chris Singleton]

Kaypro serial number from left to right / top: #48137, #123510 / below: #125065, #270274. The bottom left Kaypro 10 has a TurboROM '84 v3.4 BIOS.

Collection No. 2 - Frank Rahman

Courtesy of Frank Rahman, Springfield, Illinois, USA

I [Frank Rahman] currently have 19 CP/M based Kaypro machines. The earliest serial number I have is 2775.

- Of the II or 2s I have 13. (One is a Plus 88)
- Of the 4s I have 4. (One is a Plus 88)
- Of the 10s I have 1.
- Of the 1s I have 1.
Kaypro collection 2
Collection No. 2 - [Frank Rahman]

Kaypro II ........ #002-275

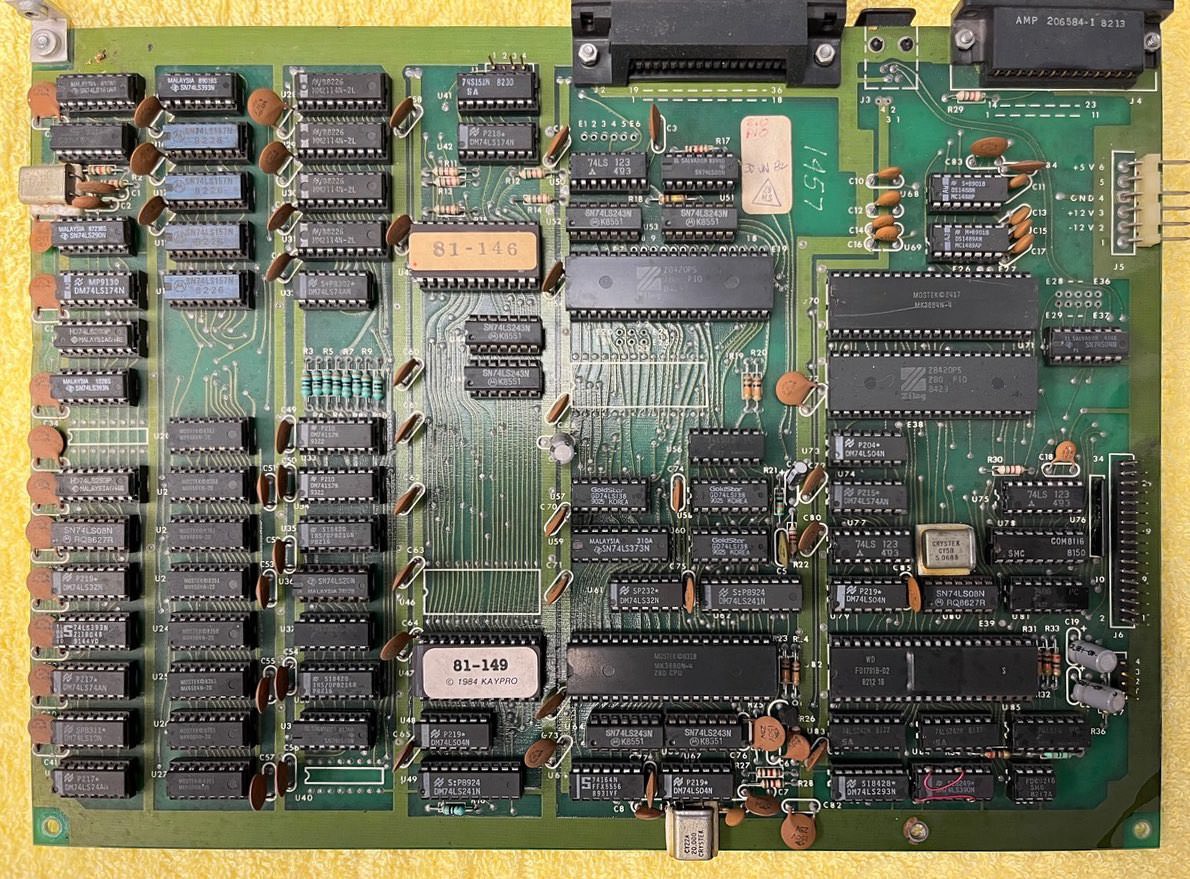

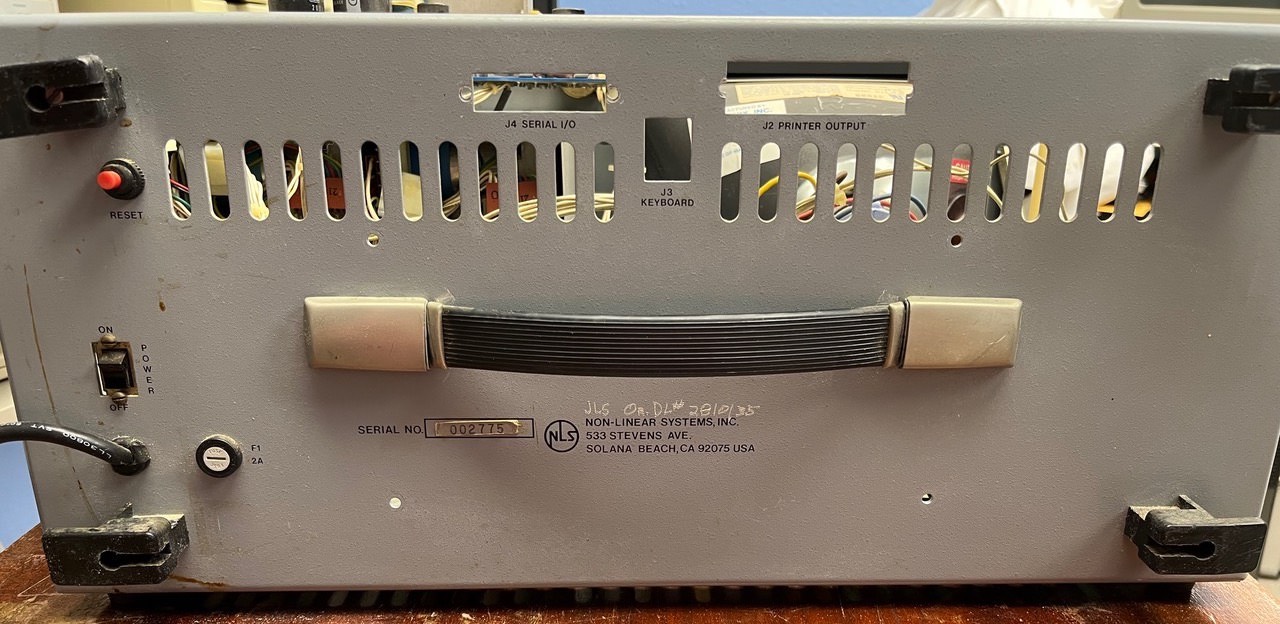

This Kaypro II is one of the very first with the full-high floppy disk drives vertically arranged.

Kaypro collection 2
Kaypro II (#002-275) - [Frank Rahman]
Kaypro collection 2
Kaypro II (#002-275) - [Frank Rahman]

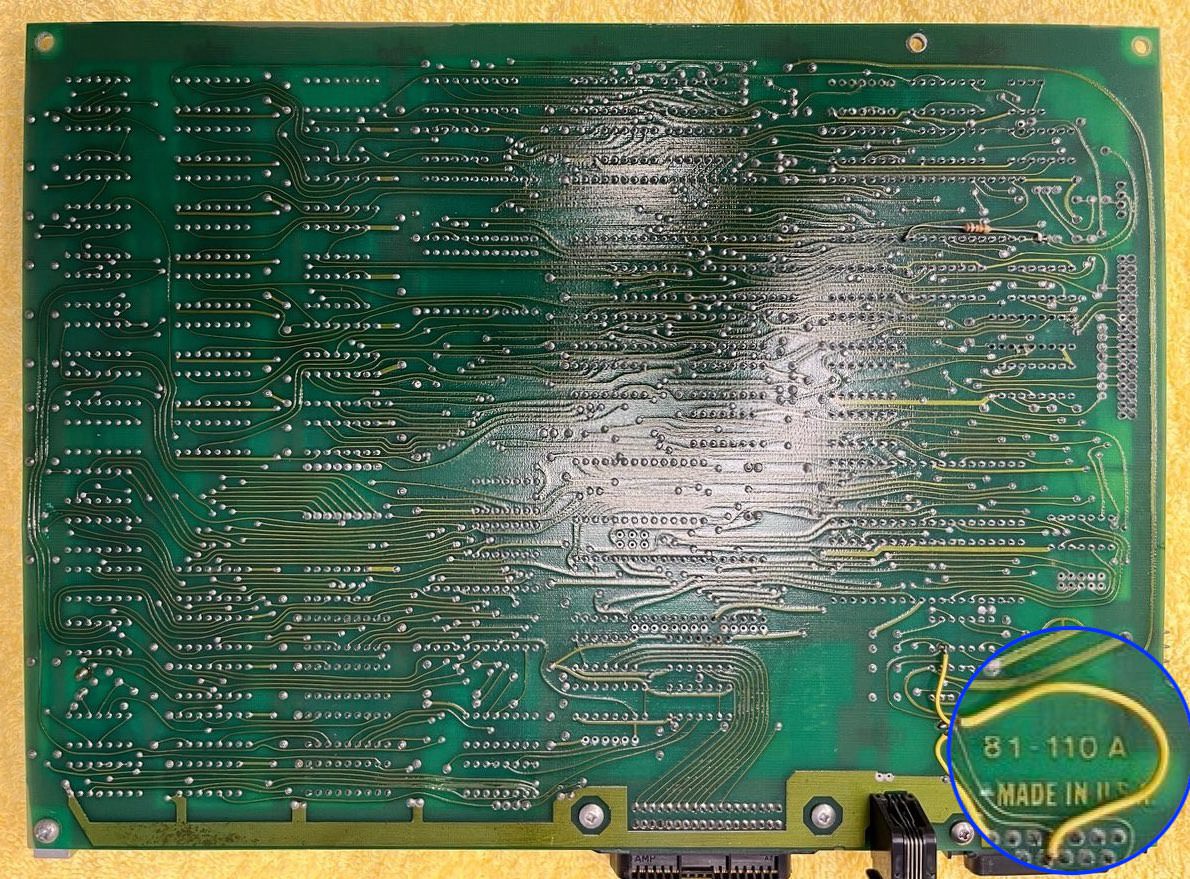

With factory drive fix mod.

Kaypro collection 2
Kaypro II (#002-275) - [Frank Rahman]
