Micro Solutions / CompatiCard I / (1)


A versatile floppy disk controller

I've been looking for this floppy controller card for over a year. Now I got a CompatiCard I (Rev B). This card is really a versatile floppy disk controller.

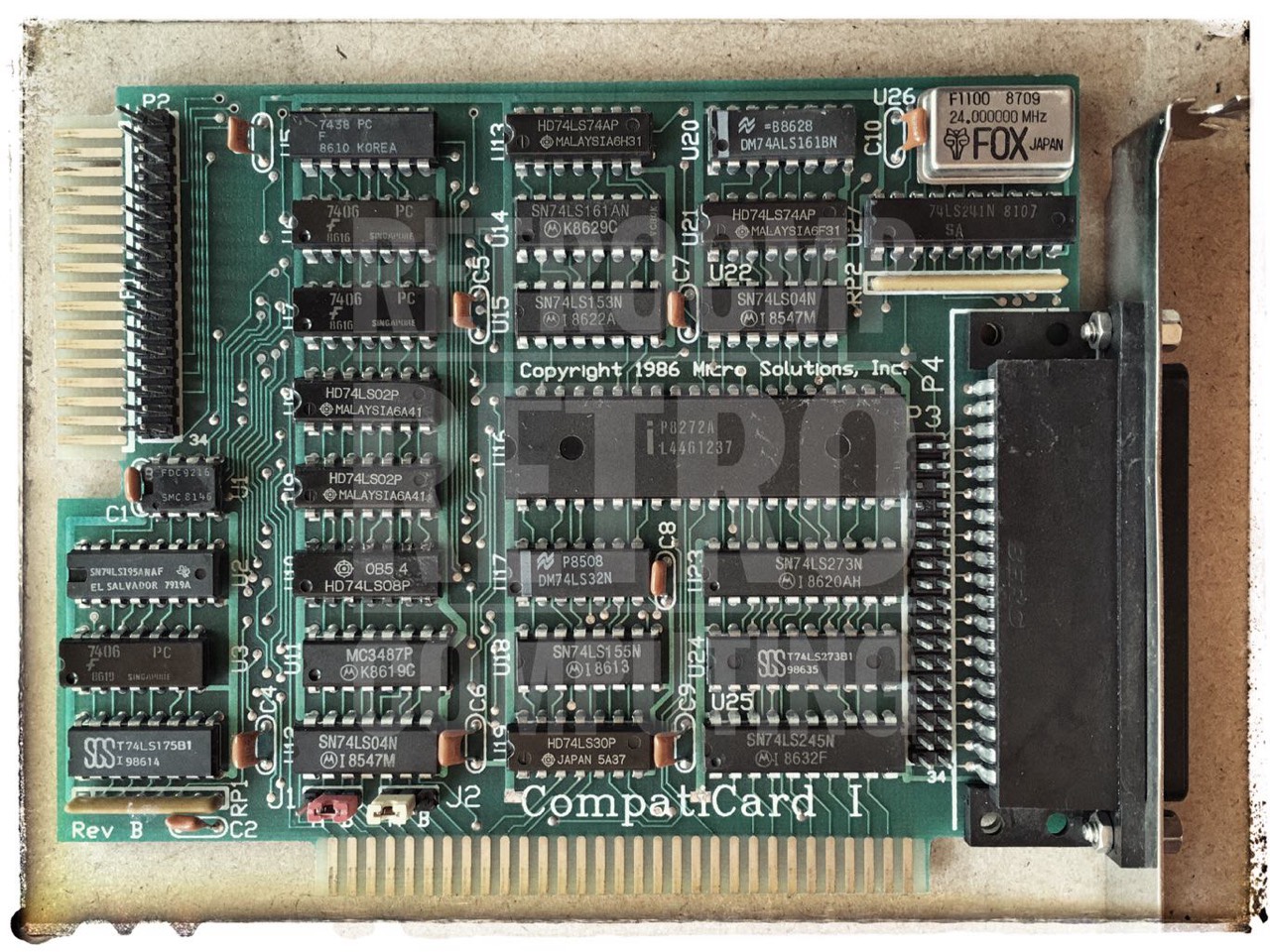

CompatiCard I (Rev B), 1986
CompatiCard I (Rev B), 1986

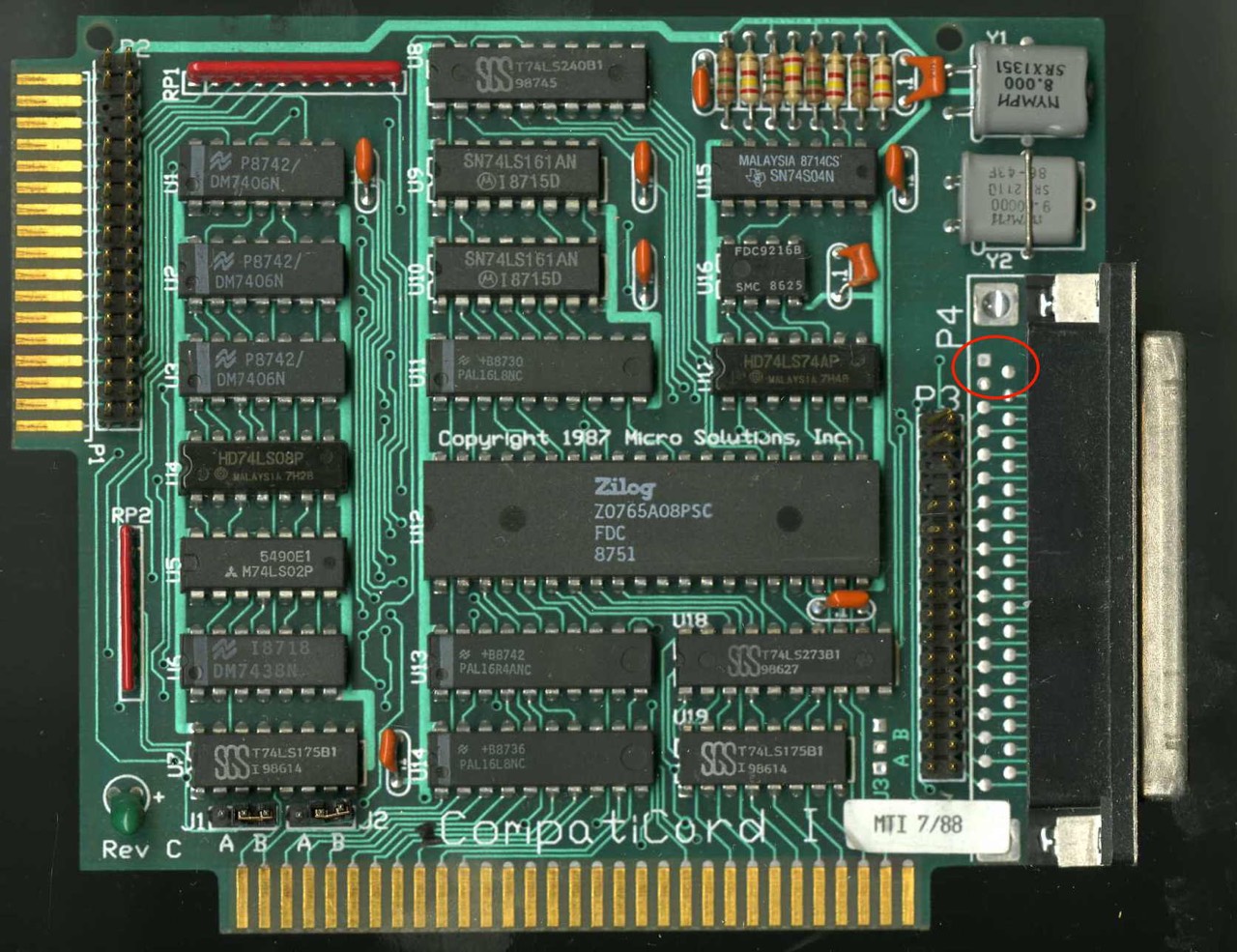

CompatiCard I (Rev C), 1987
CompatiCard I (Rev C), 1987

Revision C already looks somewhat more optimized than revision B.

CompatiCard I (Rev D), 1987
CompatiCard I (Rev D), 1989

Update 2020-01-15: Current supply

Attention, the cards from around 1986/87 differ in one important point from those from around 1989 and later. On the former the connector P4 is without current supply, on the later ones with current (+12V, +5V) on lines 1 and 2! Please refer to the manuals below (Tab 5-1) and have a look at Revisions C and D.

The jumpers JP4 and JP5 (Rev D) were not mentioned in the manual from 1990!

Revisions, Versions and FDCs

No.1 of the following table is my own CompatiCard I. I got the informations about the other cards from the internet (pictures). As you can see, most of the FDCs are 8272A chips and one 765A.

no. model rev fdc date
1 CC I B Intel P8272A 1986
2 CC I C UM8272A 1987
3 CC I C Zilog Z0765AO8PSC 1987
4 CC I D UM8272A 1989
5 CC II C UM8272A 1989
See manual page 5-1: "CompatiCard uses the 765 or 8272 diskette controller chip to achieve compatibility with the IBM diskette controller." Follow this link to the original IBM diskette drive adapters.

Types of drives and formats

The CompatiCard I supports a variety of formats, see the figure below. The /360 format is also supported by 3.5" drives ab CCDRIVER Version 1.2x.

CompatiCard I

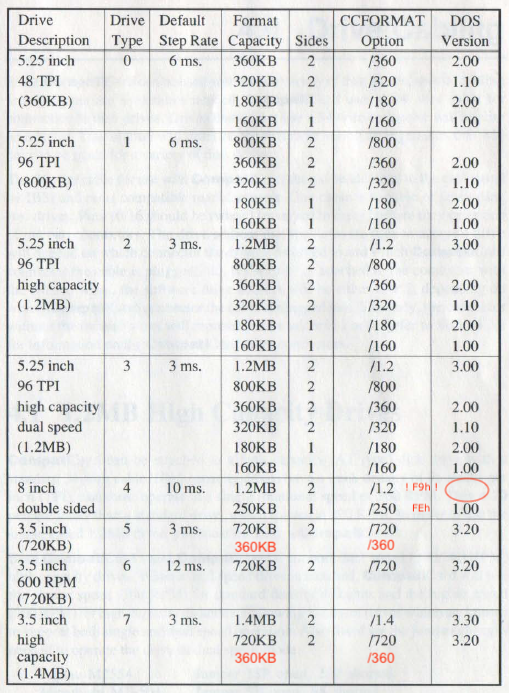

CompatiCard I: Types of drives and formats supported


First time I installed the CompatiCard in an AT compatible 80268 motherboard as the primary floppy disk adapter. The operating system is MS-DOS 3.20. As floppy drive A: I have a TEAC FD-55BV (360 KB) and as drive B: a TEAC FD-55GFR (1.2 MB). Both drives are installed with one twisted 34 pin cable at the plug P2. In the BIOS both drives are correctly set. The DOS startup process "sounds" normal as ever.

But! Without installation of the CompatiCard software (ccdriver.sys) only drive A: (360 KB) is usable. Drive B: (1.2 MB) is visible, but the logical 1.2 MB format is not recognized. Only after installation of the driver the 1.2 MB drive is recognized correctly and can be used.

Then I exchanged the 1.2 MB floppy disk drive for a 360 KB drive. See that, the access also works here without the CompatiCard drivers. In other words, the CompatiCard only supports 360 KB drives by default. For all other formats the CompatiCard driver must be installed.

See manual, page 1-1: "CompatiCard can be used as a direct replacement for the standard IBM floppy disk controller card used in the PC and XT. CompatiCard is NOT a replacement for the primary foppy disk controller in an AT type machine."

Unlike the CompatiCard IV (CC4), the CC1 is not an AT type controller. For this reason it cannot be used with the ImageDisk program with HD (1.2M, 1.44M) and 8" drives. The CC1 has a very special way to set the data transfer rate. This method is not the usual PC disk controller standard. ImageDisk uses the IBM PC AT standard.

With one CompatiCard you can operate four physical floppy disk drives. In total even four CompatiCards are possible, i.e. you could operate twelve real floppy disk drives in one PC! Of course you may argue about the sense of twelve floppy drives! For example, a multifunctional copy station could be set up in this way. But who still has four CompatiCards today?

Documents and information

External links

Software and versions

Until recently, the software for all three cards (CC1, CC2, CC4) could be easily found on the Internet.

My series about the: Micro Solutions CompatiCard I

--> Go to Part 2: Testing the 8 inch floppy drive options
