Technical specifications

Note: The Y-E DATA YD-180-1601 is identical in construction to the QUME QumeTrak 242!
Y_E DATA YD-180-1601

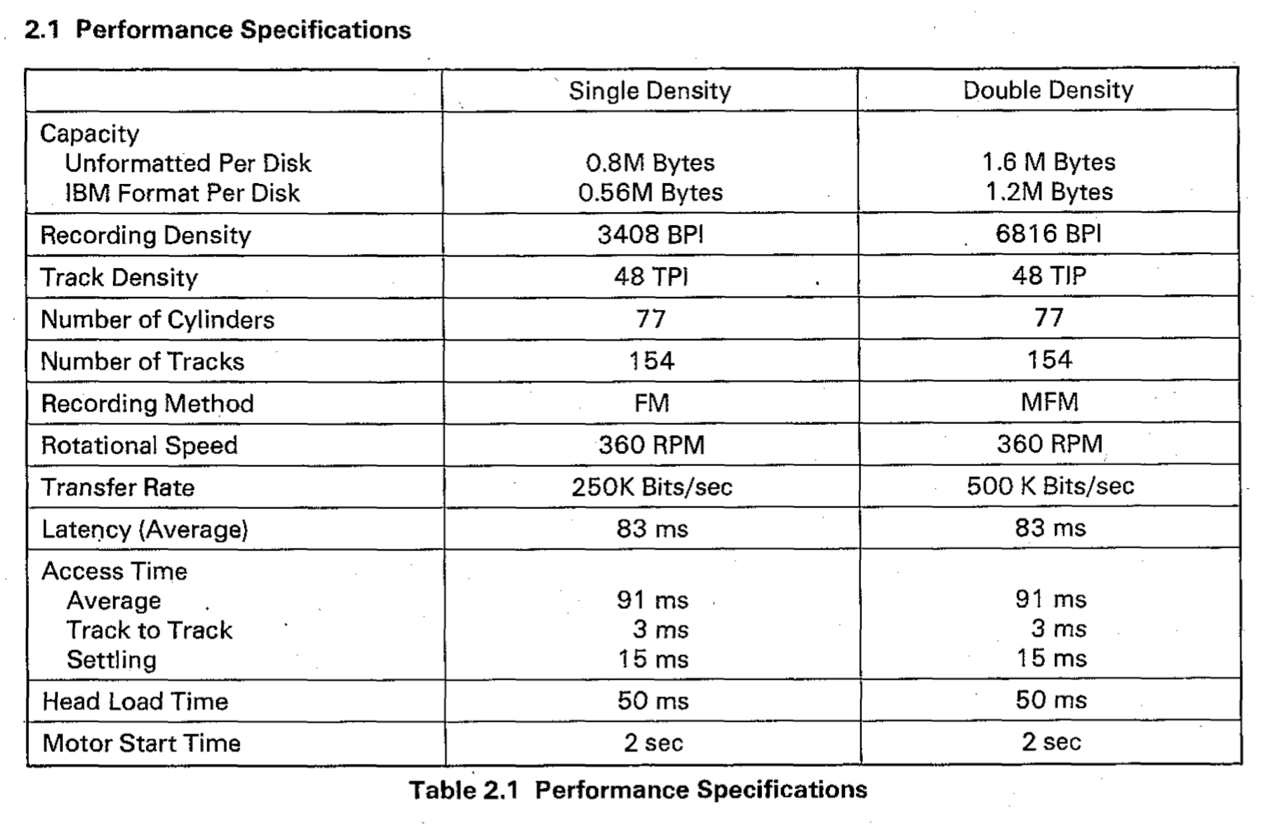

Performance Specification [1]

The basics for connecting an 8 inch floppy drive to a DOS PC are described here. Pictures of the Y_E DATA YD-180-1601.


Revisions and Versions

Y_E DATA YD-180-1601
Revisions and Versions [1]

My YD-180 is from 1991, so at least with the new LSI PCB version from about 1985. If you look at the 1982 QumeTrak 242 brochure, you will see the difference between the nonLSI and the LSI version; see next picture.

nonLSI vs. LSI
nonLSI (1982) vs. LSI (1991)

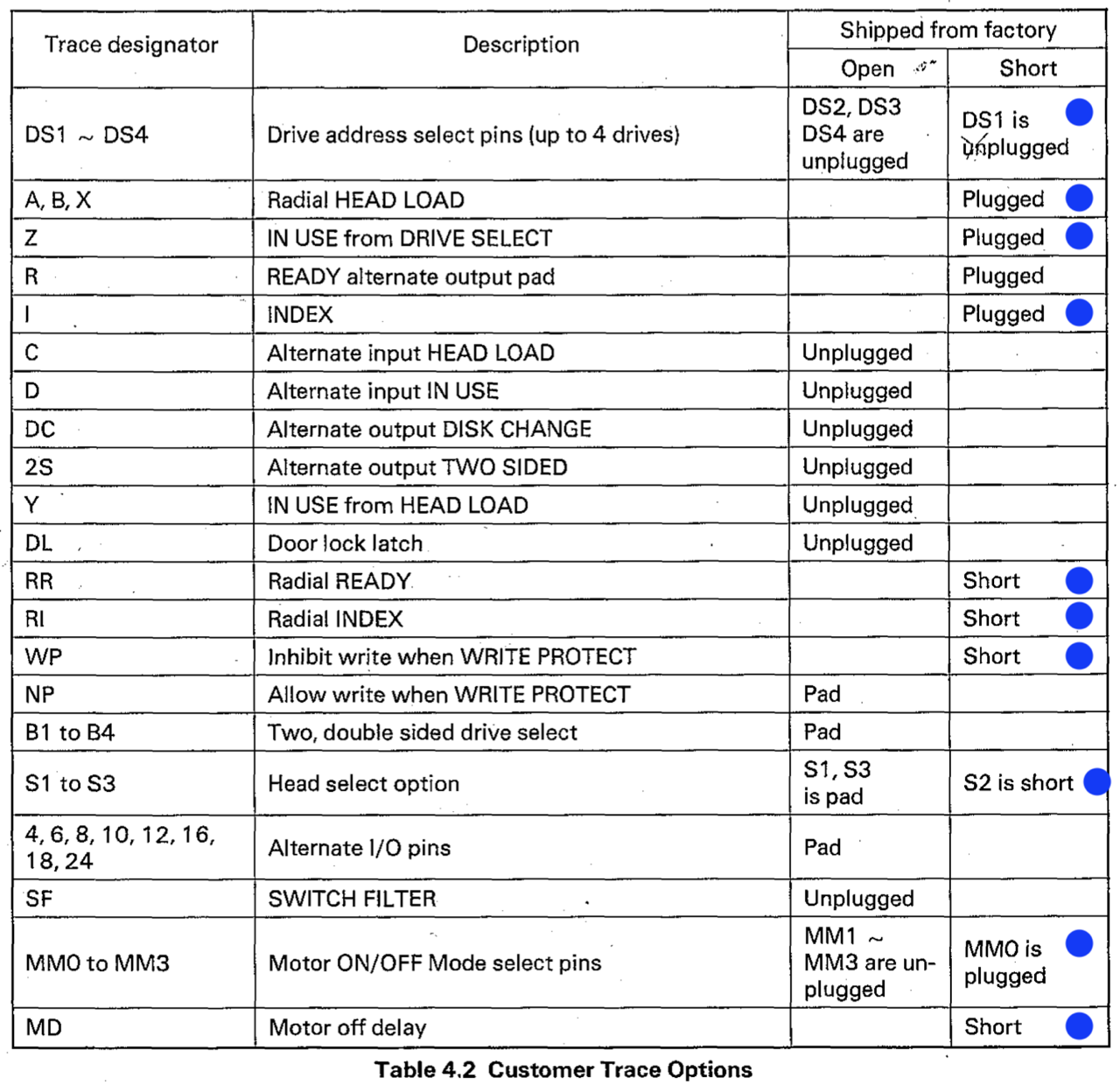

Trace Options

Trace Options
Trace Options / Jumpers

My jumper settings (blue dots = jumper plugged); tested with my 286AT with WD1006V-MM2 (WD37C65BJM). I can access this drive normally as A: and also boot from it. I used the program FDFORMAT for formatting because it is able to process only 77 tracks!

The jumpers MM0 to MM3 are a special feature. With a jumper on MM0, the motor turns on as soon as a diskette is inserted and the drive is locked. This is actually the standard for 8" drives. However, if you set a jumper to MM1/2/3, the motor stops after 2.5 seconds if there are no more disk accesses. This is the normal behaviour with 5.25" and 3.5" drives. You can experiment a little. However, my experience has been that starting the motor is too slow and sluggish for DOS and the modern controllers. Reading errors often occur.

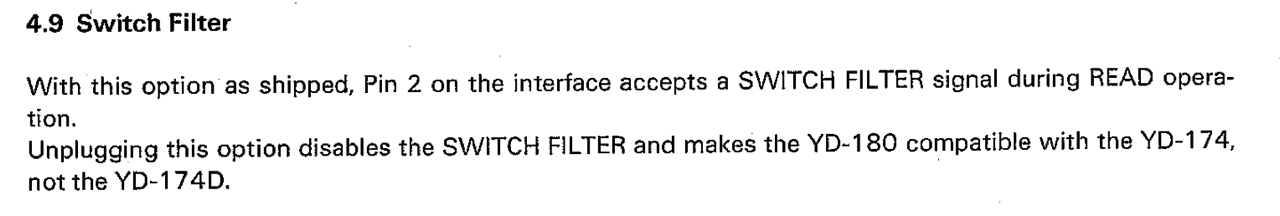

SWITCH FILTER
SWITCH FILTER [1]

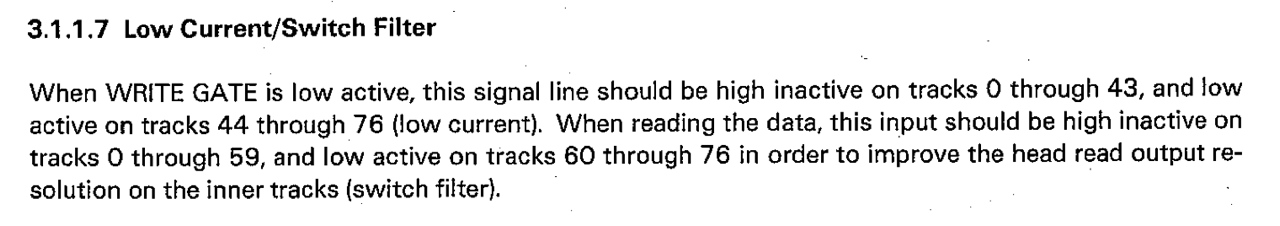

SWITCH FILTER
SWITCH FILTER [1]

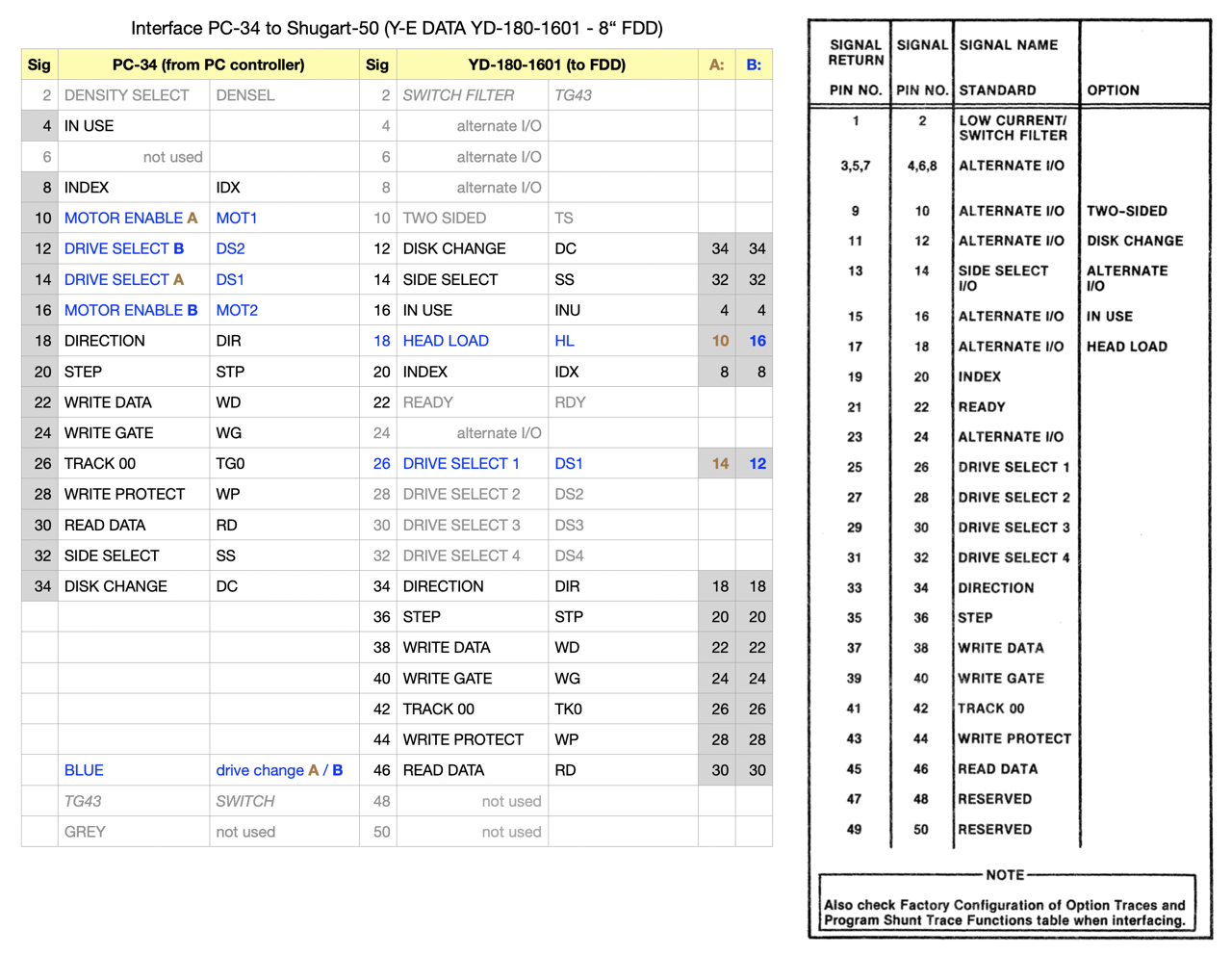

BUS Interface PC to FDD

BUS Interface
BUS Interface

I have tested both the FDADAP adapter and my own PC-34 to Shugart-50 interface. Both work perfectly.


Issues

No known issues. This drive is NOS and works flawlessly.


Reference

  1. (↑) YD-180, Product Specification, 1985
