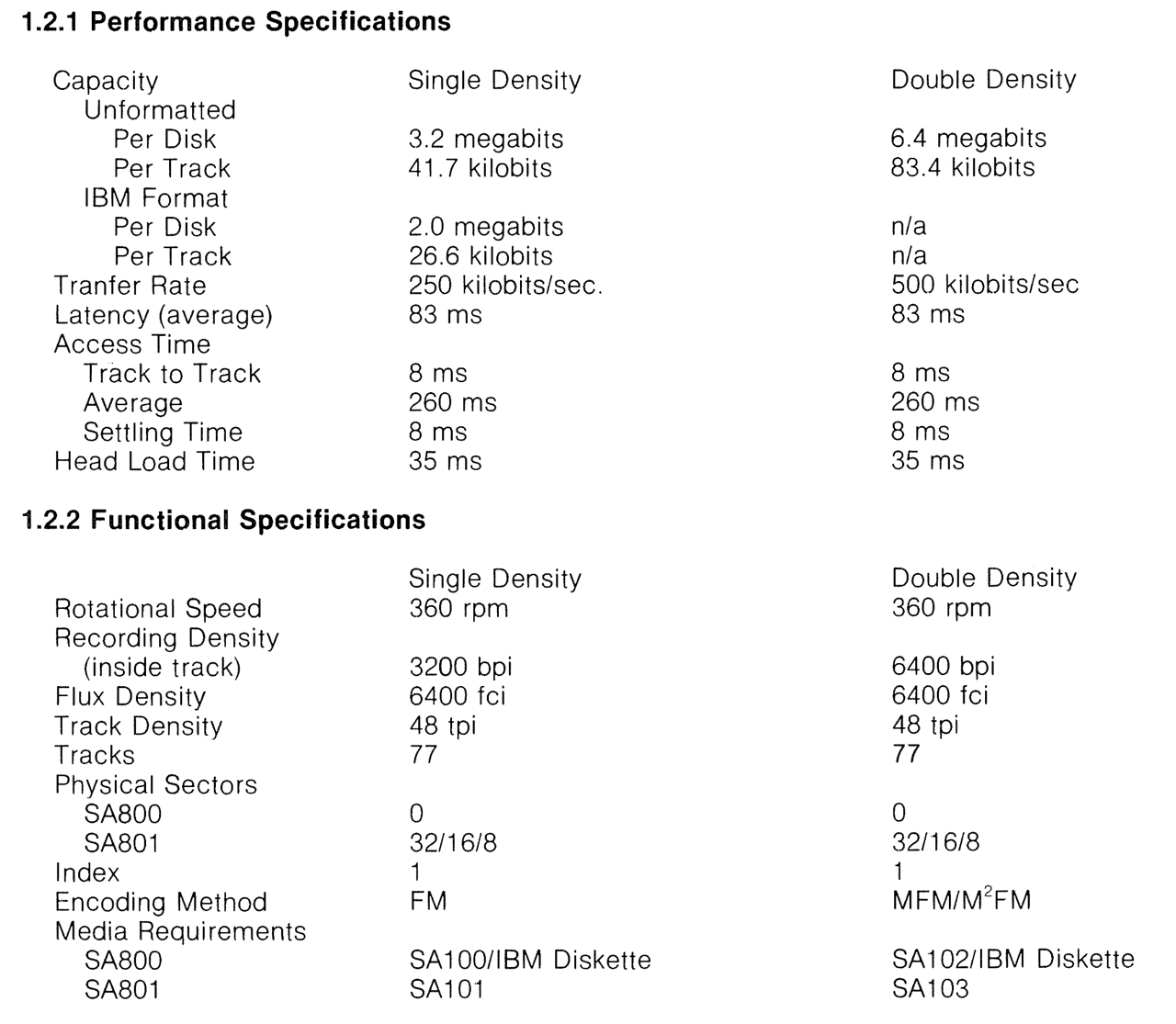

• INDEX: 1 revolution at 360 rpm takes 166,667 ms.

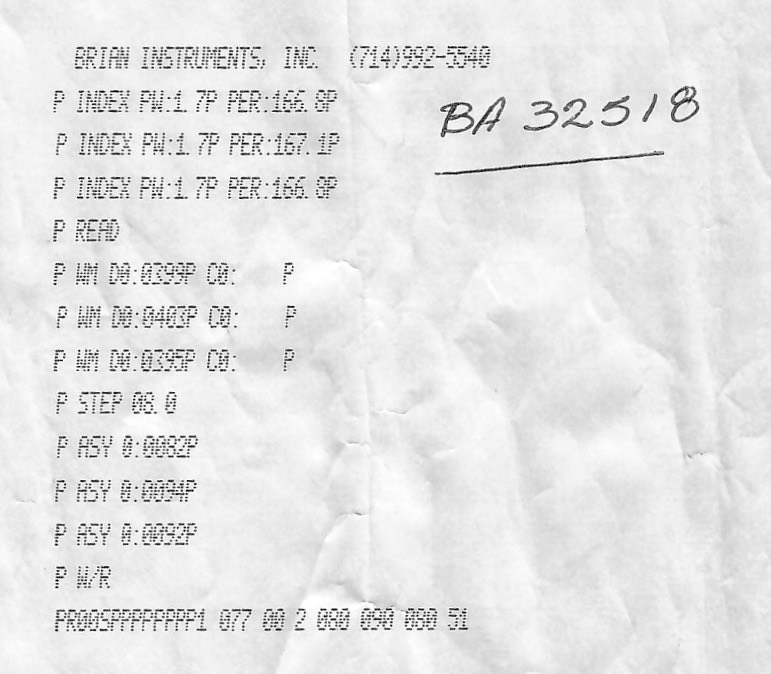

• STEP: track to track is 8 ms

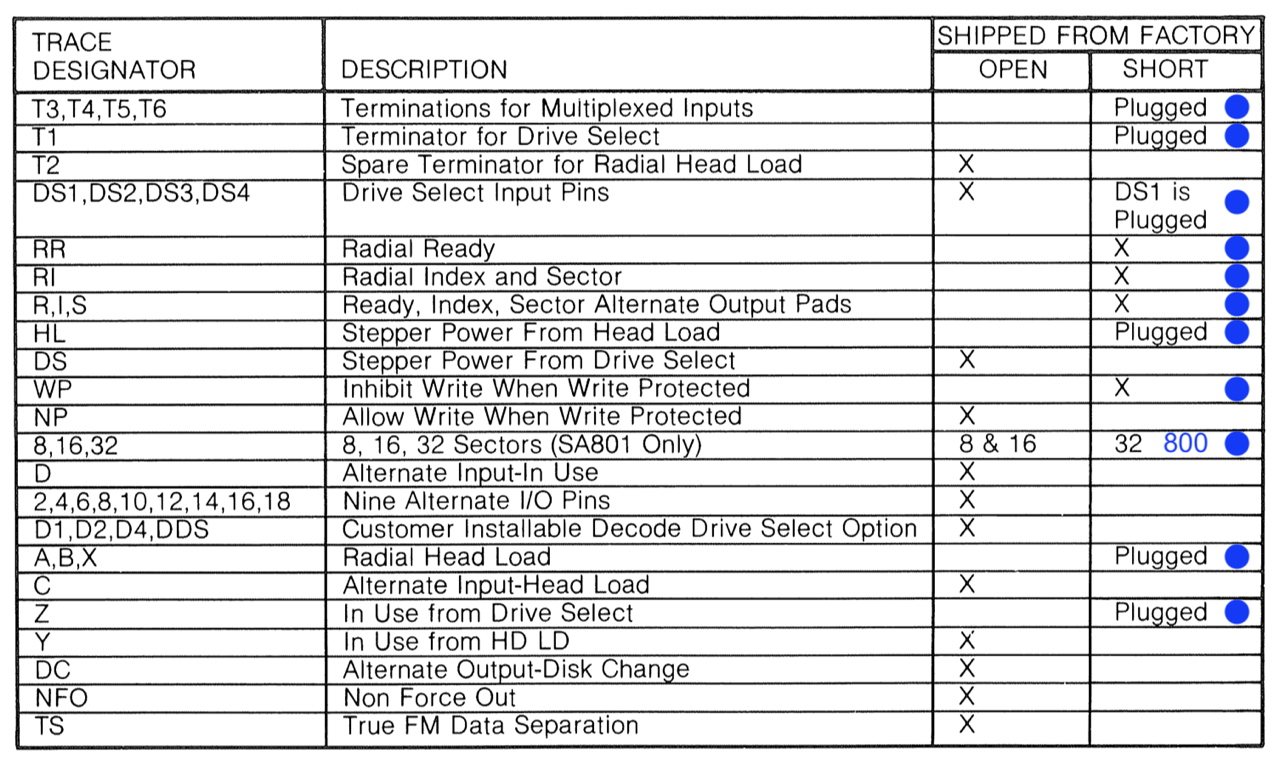

In fact, you only need to make two changes: Jumper to DS1 or DS2 and 800 (soft sector) instead of 801 (hard sector). That's it.

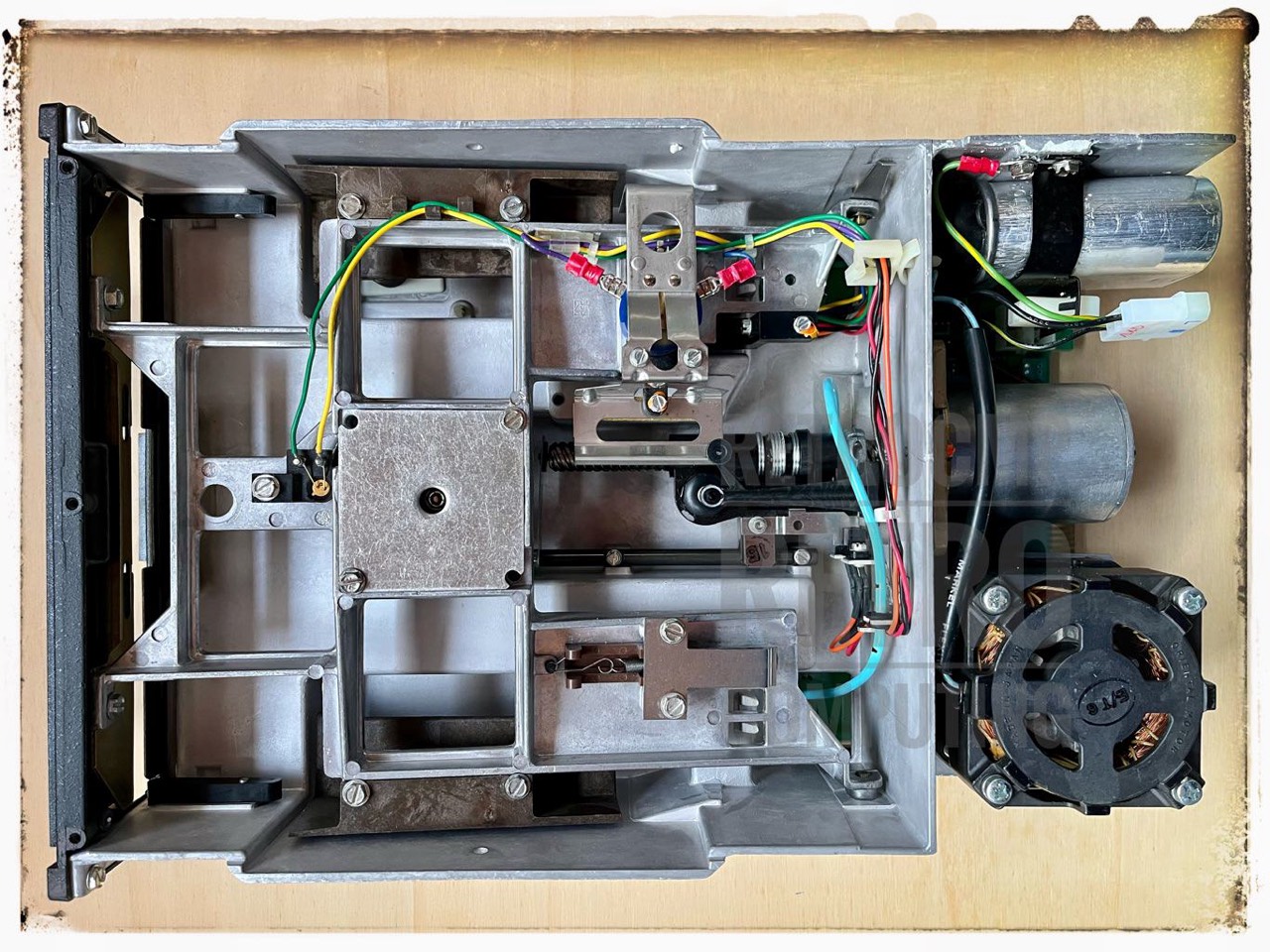

This is a 110V / 50Hz drive bought on ebay US in 01/2023. Because it has a 50Hz belt and drive pulley you can use in Europe! You only need a voltage converter.

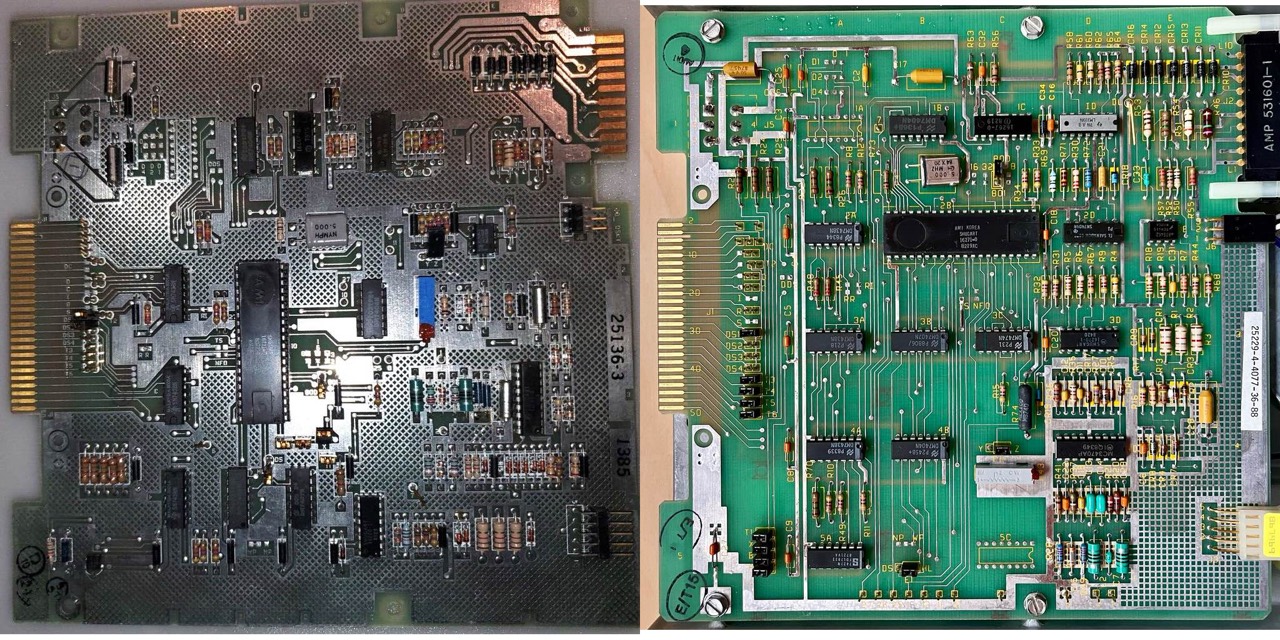

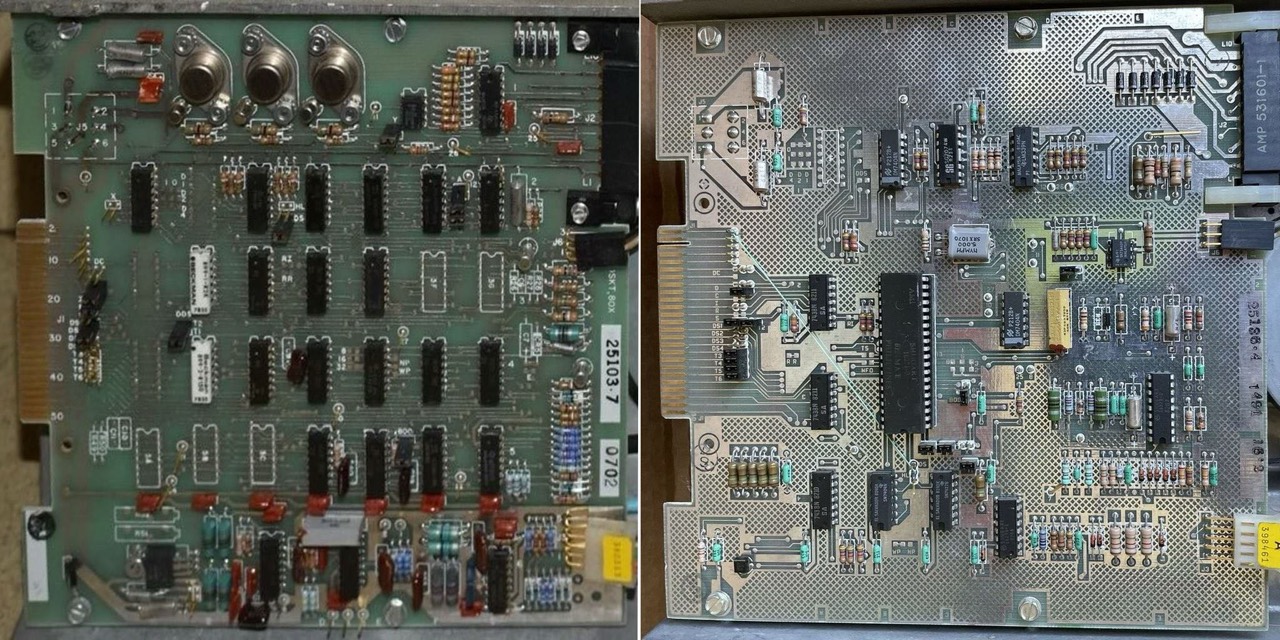

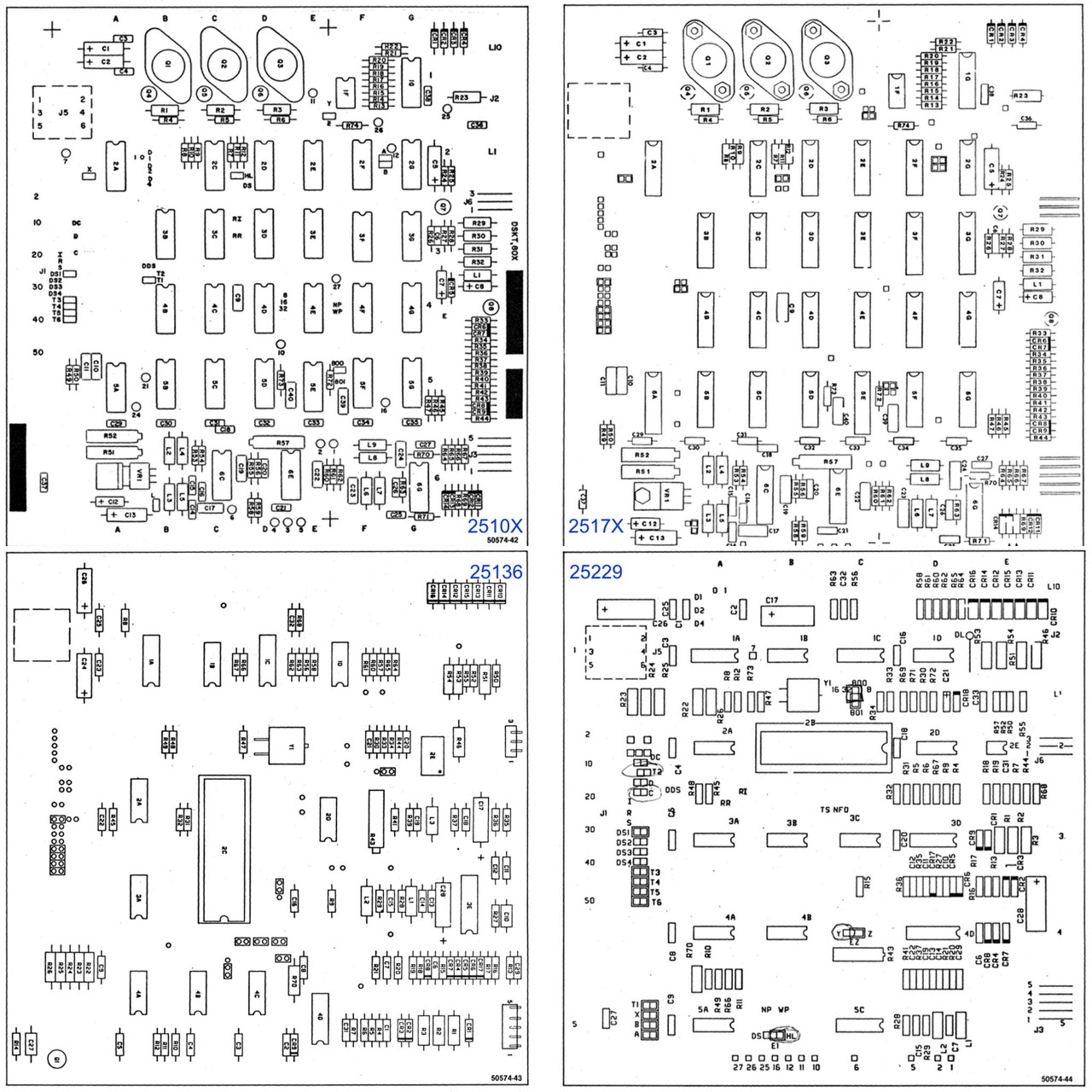

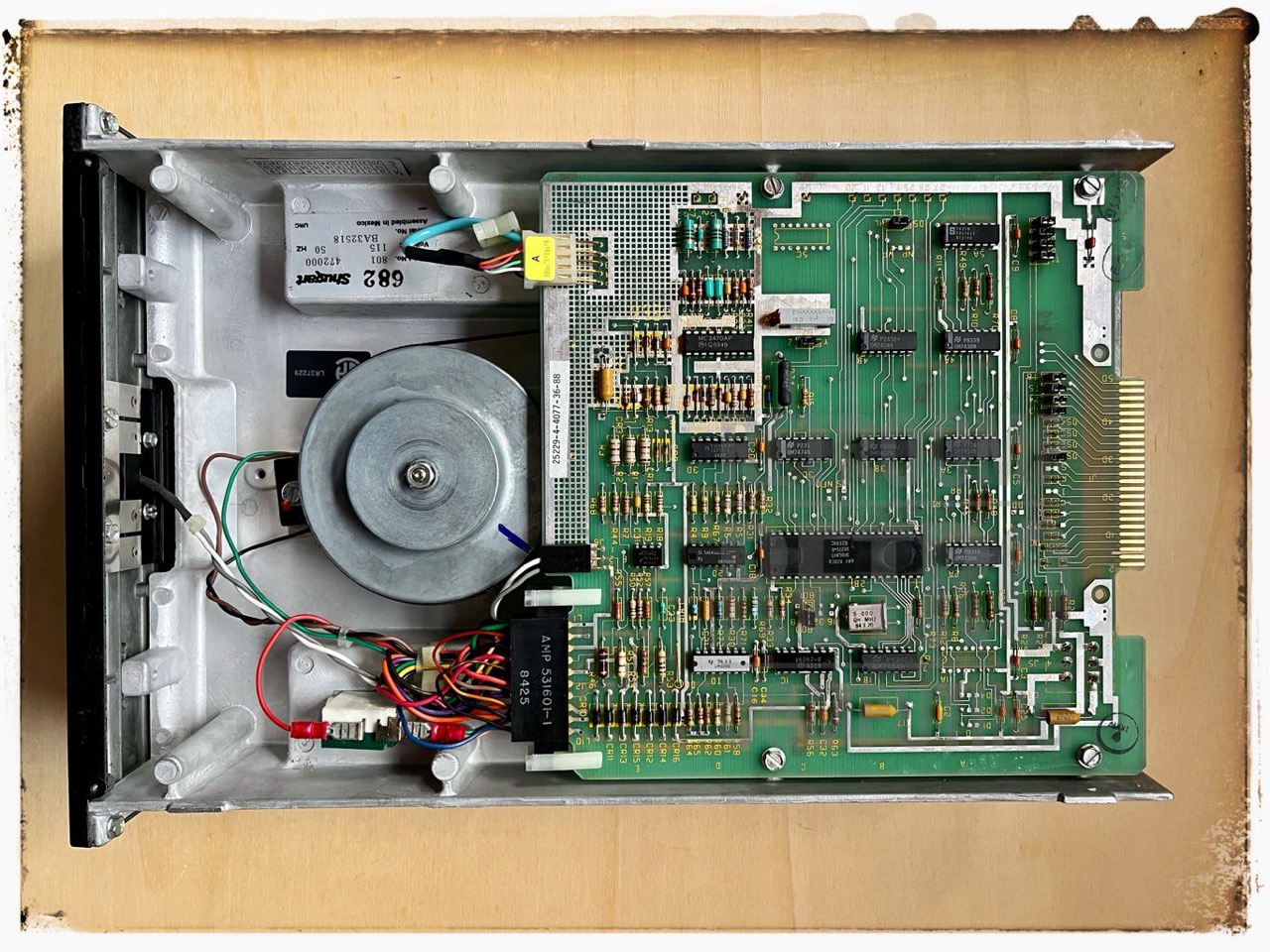

This disk drive has a newer LSI PCB, therefore you do not need -5V.

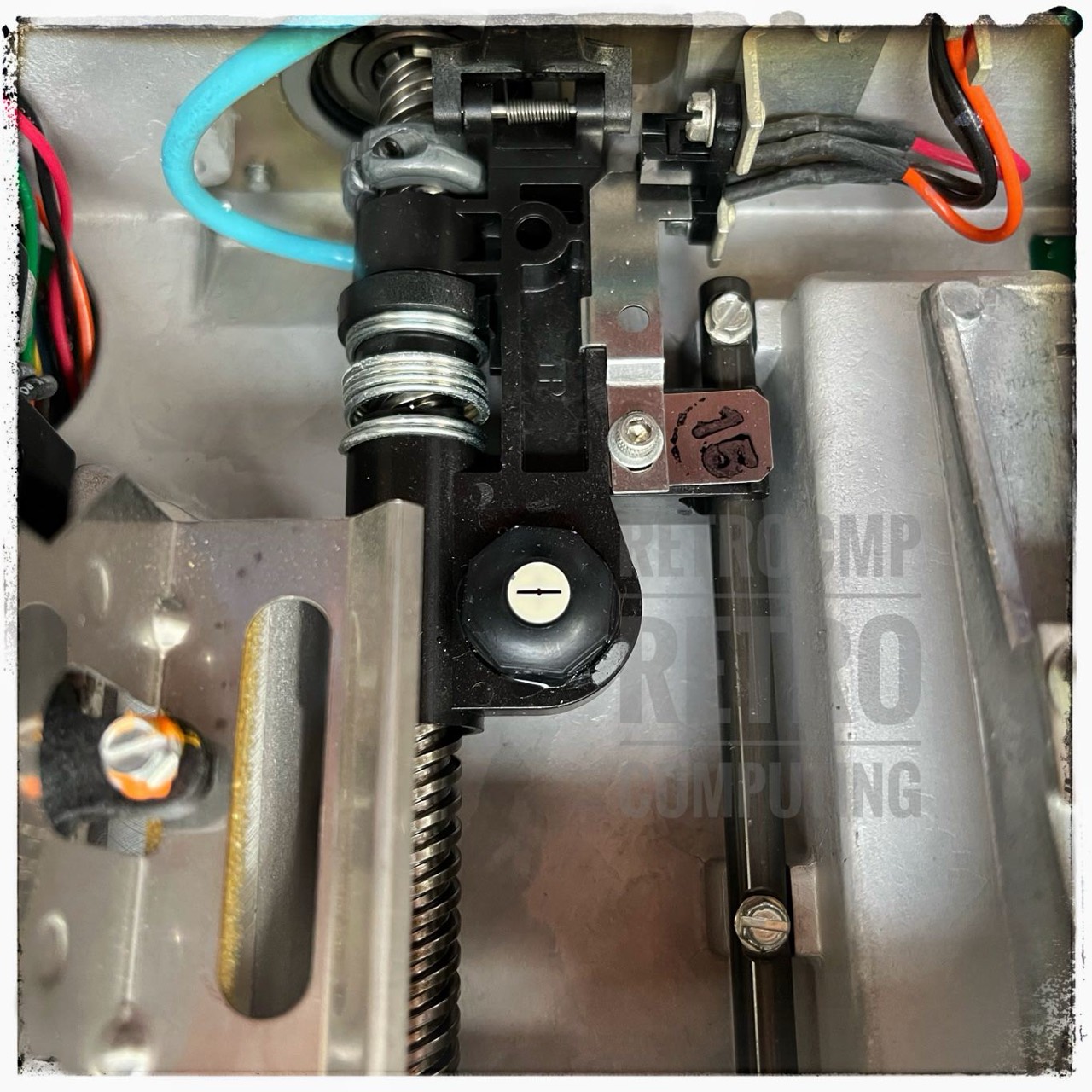

There are different versions of the R/W heads. One is the well-known „tunnel erase“ (TE) and the other is the „straddle erase“ (SE). I only know the SE from the old Shugart drives; the TE from all TEAC drives.

No known issues. This drive is NOS and works flawlessly.

---

Reference

1. (↑) Shugart 800/801 OEM Manual, 1977

• Shugart 800/801 OEM Manual (en), 1977
• Shugart 800/801 Service Manual (en), 1982
