The Panasonic JU-475-2 EAF

All technical parameters can be found in the brochures (see below).

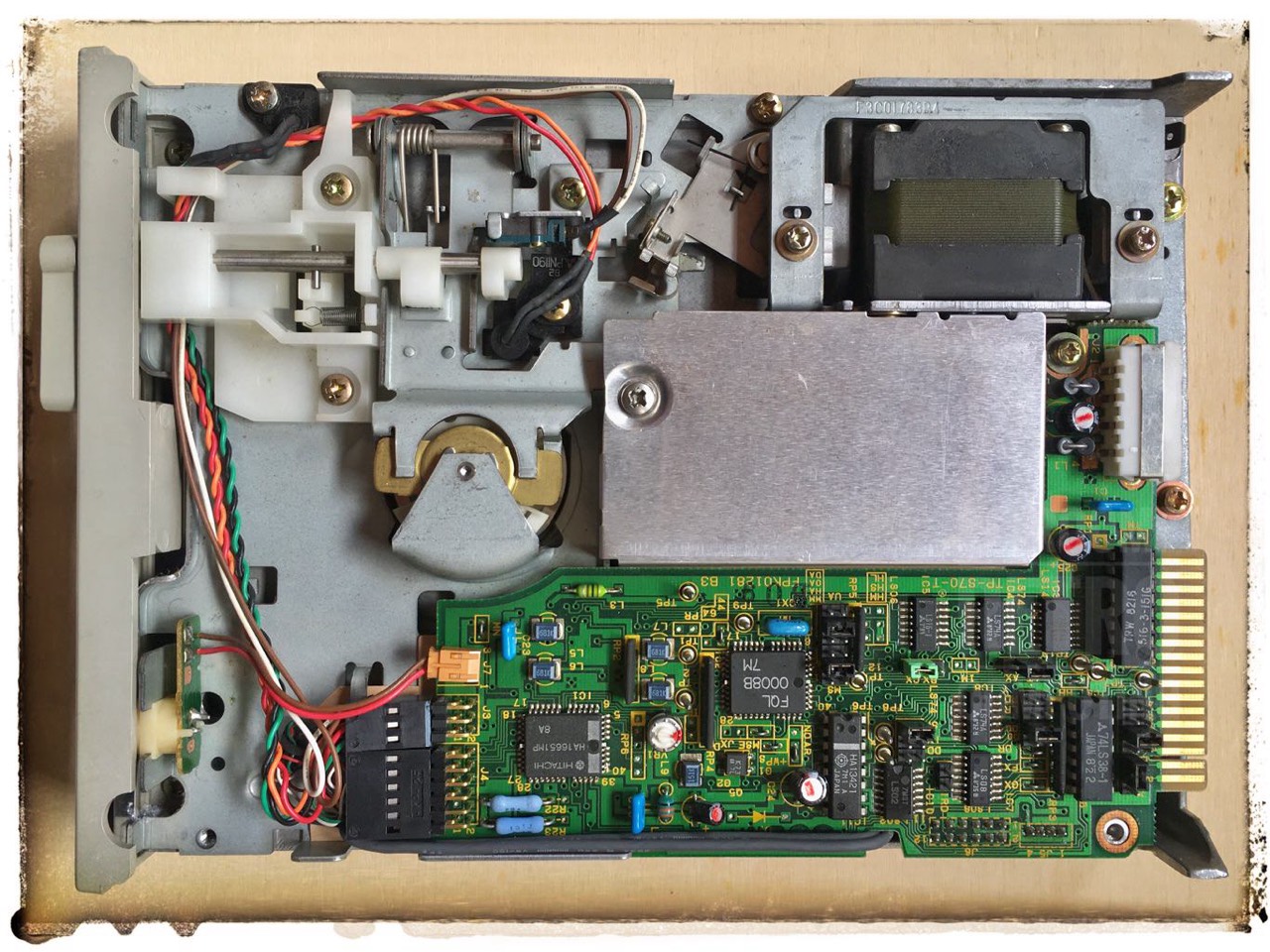

Panasonic JU-475-2 EAF
Panasonic JU-475-2 EAF
Panasonic JU-475-2 EAF
Panasonic JU-475-2 EAF

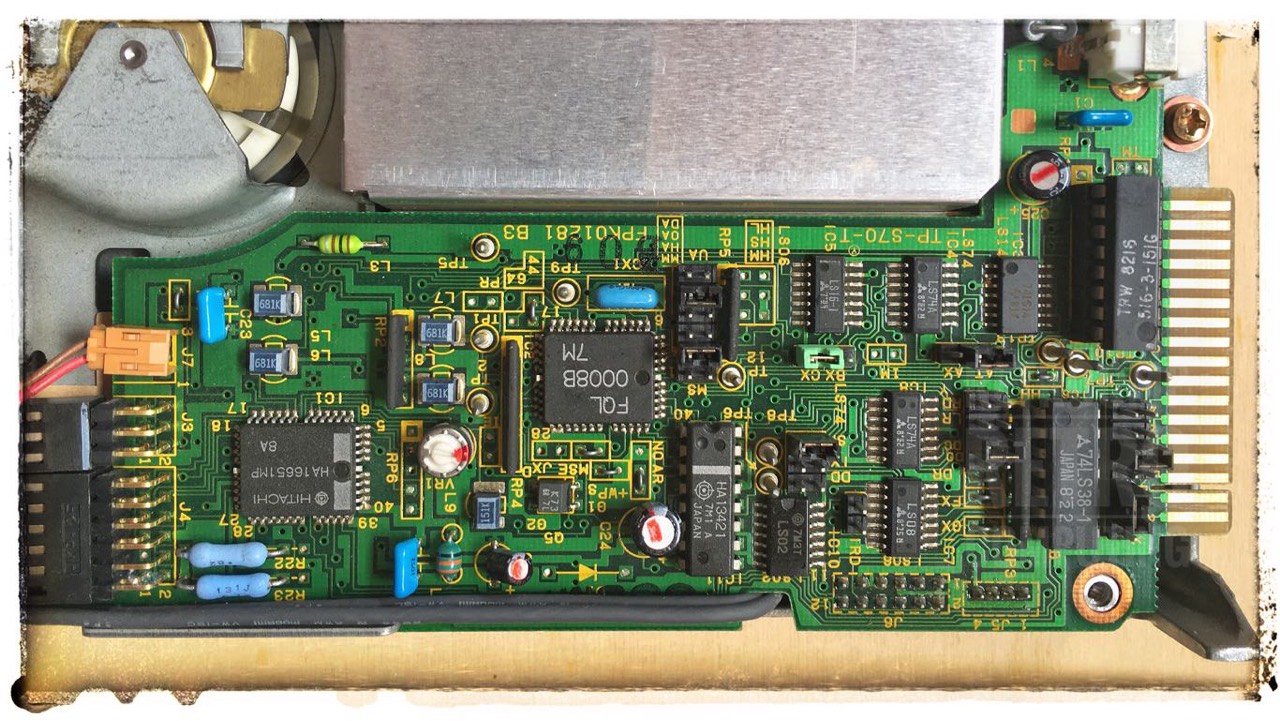

Jumper Settings

I tested the drive with my IBM 5170 motherboard and the Apaptec AHA-1542B controller. In the BIOS I configured the floppy drive as 1.2MB (360 RPM) but it can also read double-sided 360KB and single-sided 160KB floppy disks without problems (both 300 RPM); variable compatibility, reads 96 or 48 tpi.

My default dettings are: DS2, DS, AT, DC, CX, SP, DA, MM


Documents
