Running an external 2.88 MByte floppy drive under PC/MS-DOS
The hidden CompatiCard IV

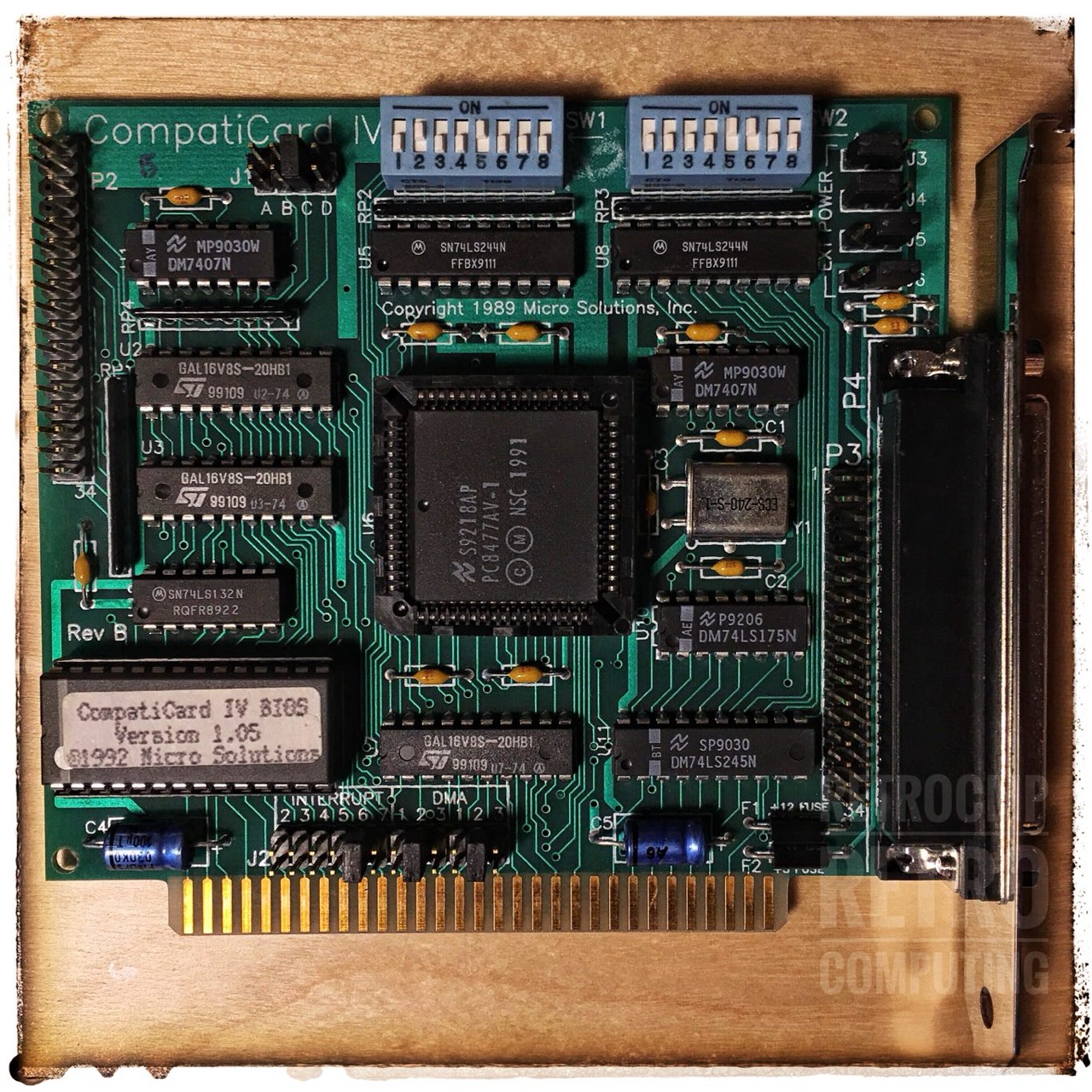

I couldn't believe it at first. I bought a (NOS) Megamate 2.8MB external floppy disk drive on eBay US (about 90 EUR/100 $). It was delivered and lay around for 4 weeks because I had no time. But now, I unpack it and can't believe my eyes! Next to the floppy drive there is a brand new CompatiCard IV (CC4) as floppy controller complete with manual and software.
A CompatiCard IV is currently not traded below 400 EUR on eBay and I paid 90 EUR/100 $ for it and a 2.8M floppy drive. In addition there are 2 x 30 EUR for postage and customs. I still can't believe it.
And now comes the best. There were two more items to buy on eBay! What should I say to it ...!
No normal person believes me! The offer of these three Megamate 2.8 / CompatiCard IV has been on eBay US for almost eight weeks! I repeat, ... eight weeks ... !

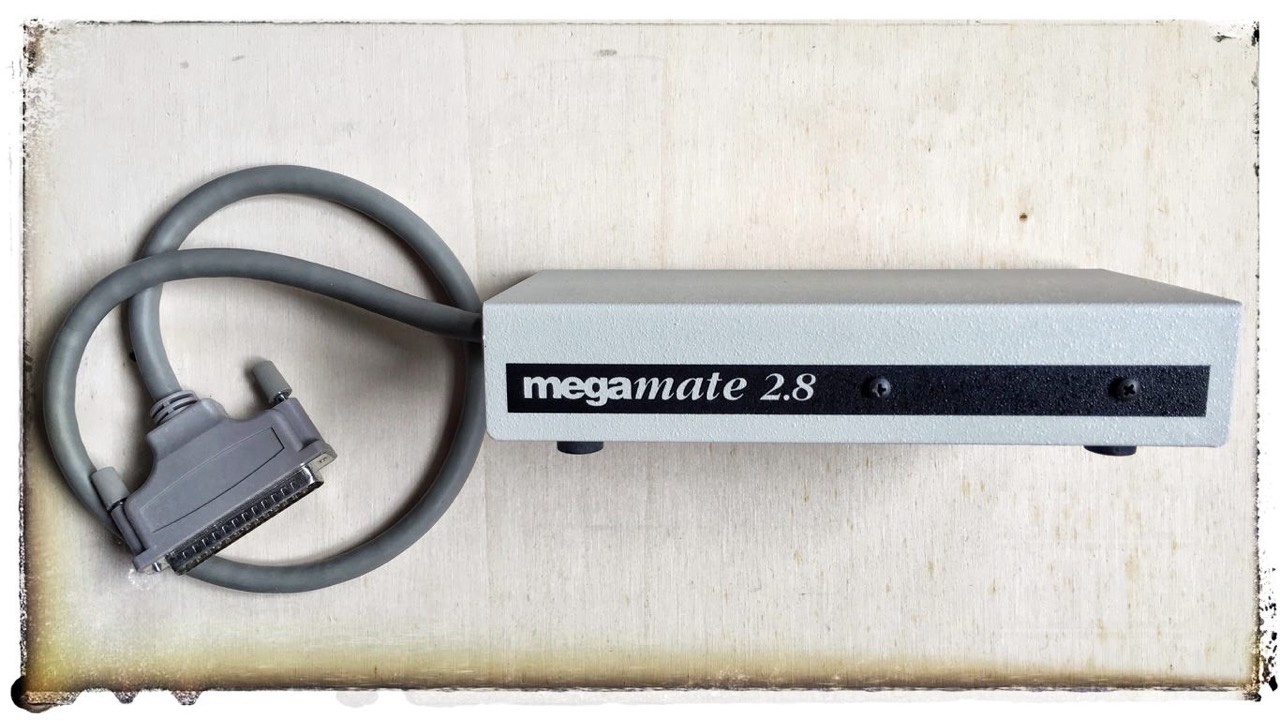

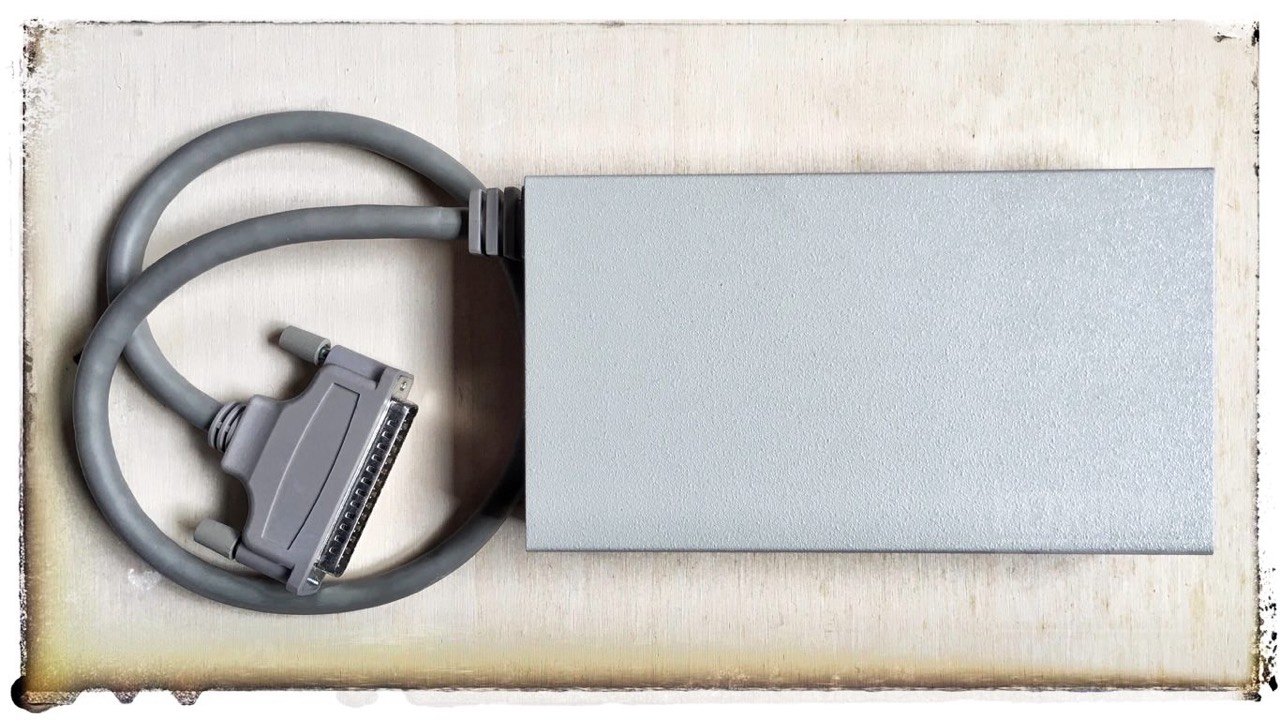

And here they are ...

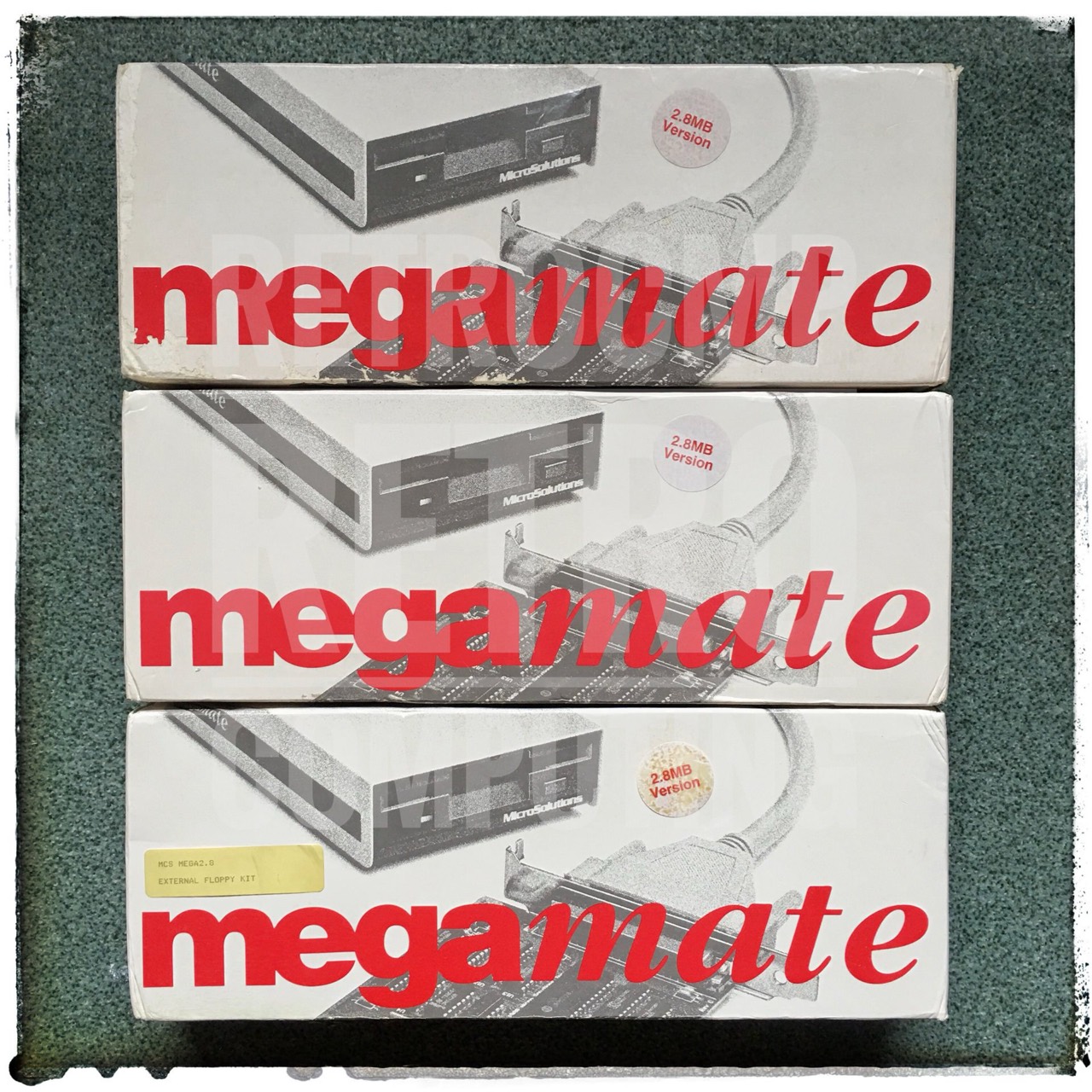

Two packages were still originally packed in foil, one package was without foil, but otherwise never used! All items with manuals and software. All CompatiCard's IV have the BIOS version 1.05.

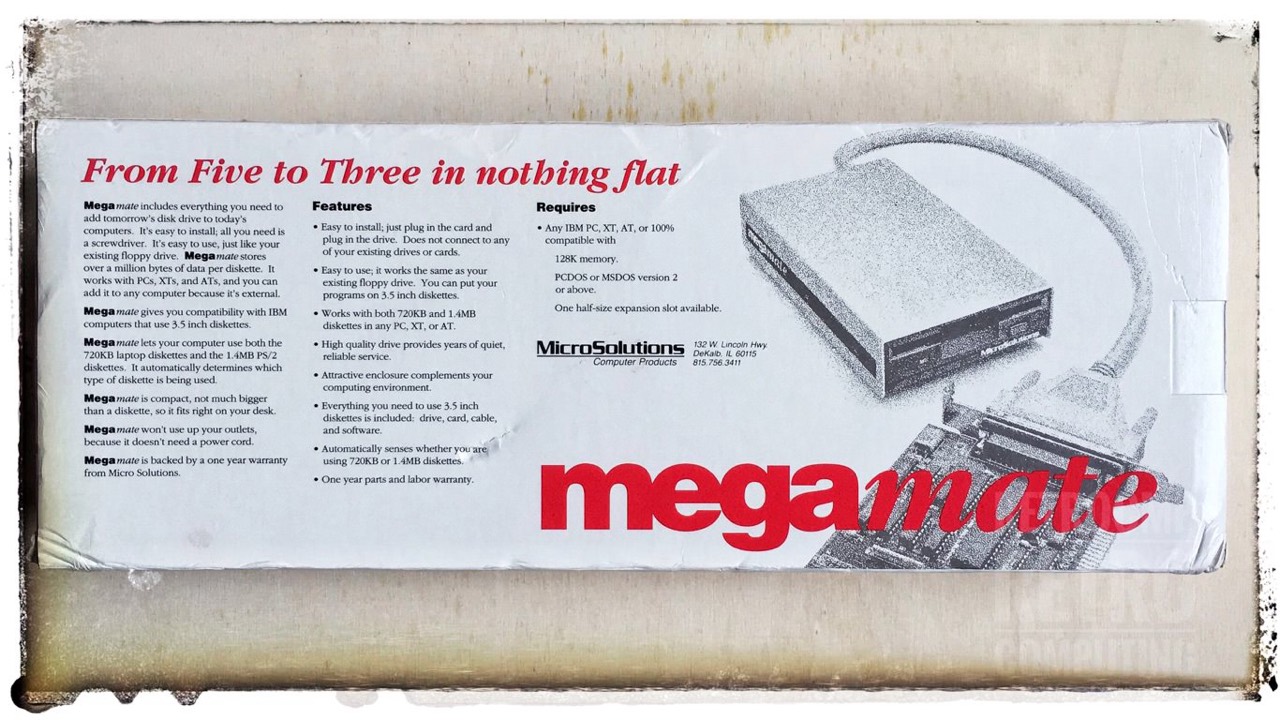

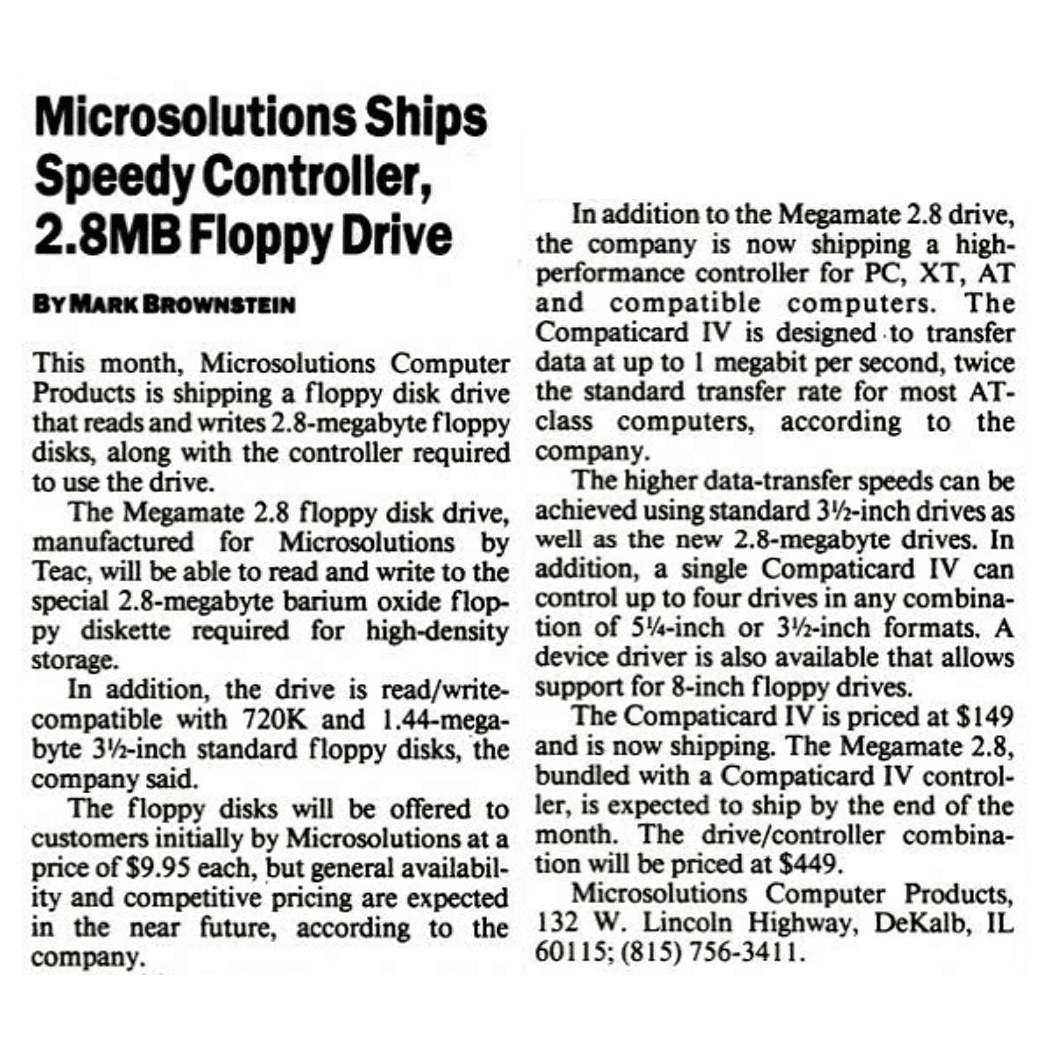

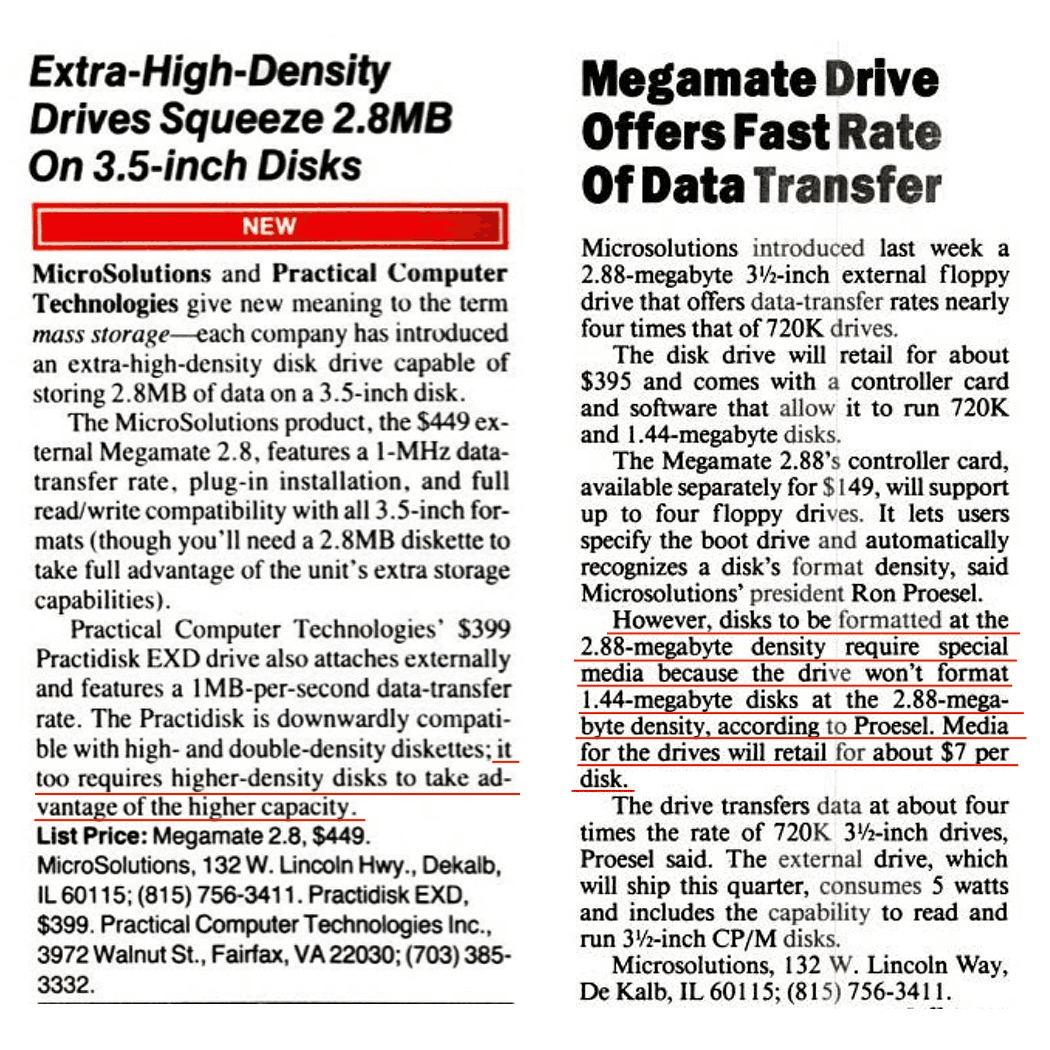

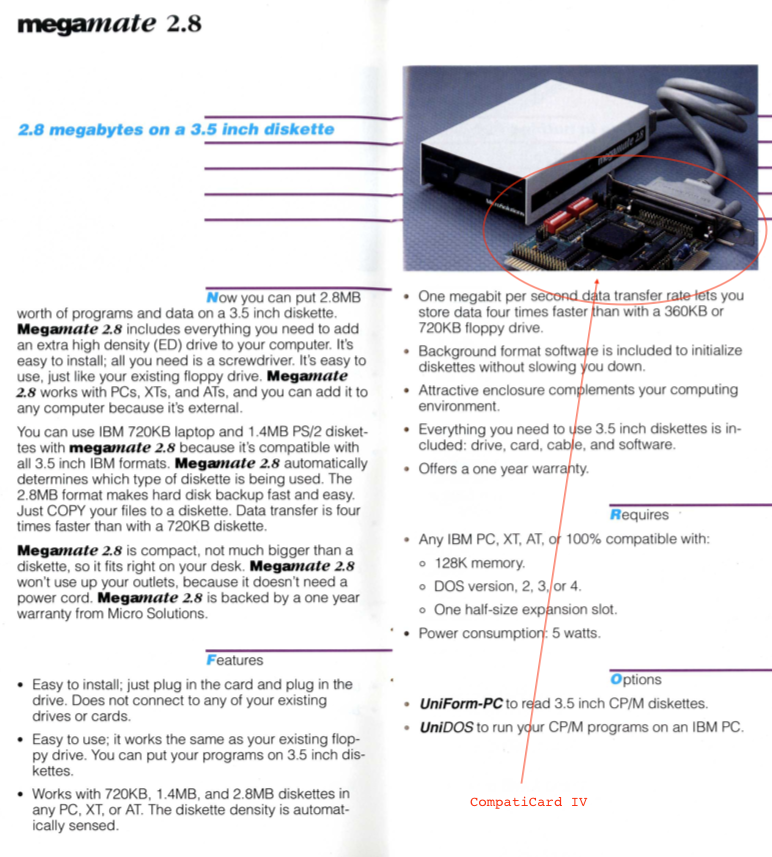

Some old Advertising
My advertising blocker is actually blocking these two pictures, which I have even put together from several individual articles! If this is also the case with you, then please deactivate the blocker for this page!
Setting up the Megamate 2.8 is very easy. It doesn't take more than 10 minutes. I now have four drives in my 386DX-AT. If I had set up the CompatiCard IV as the second controller, I would even have six drives. But who needs such a thing?

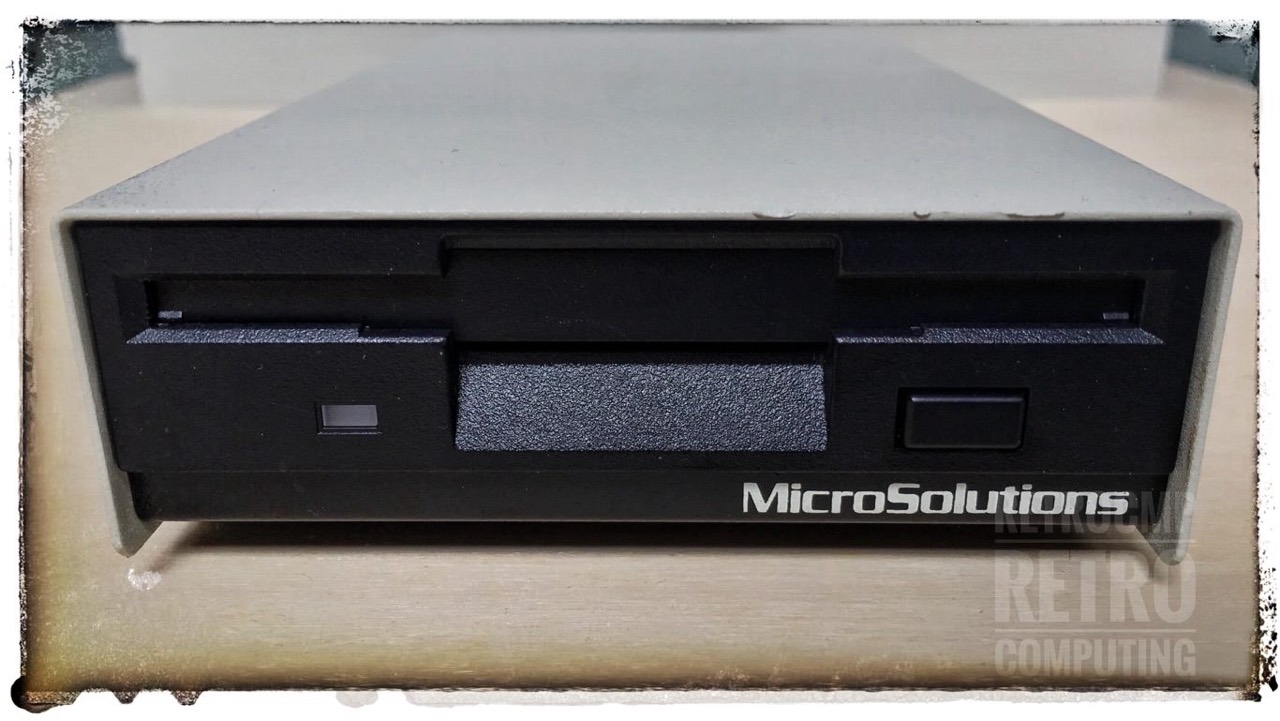

But now to Megamate 2.8. Once set up it reads and writes 720 KB, 1.44 MB and 2.88 MB without problems. The case feels really good; the Megamate 2.8 also 'sounds' really good when accessed. No rattling or anything else. Good workmanship.
Basically there is not much to say about the Megamate 2.8. It does exactly what it is supposed to do.

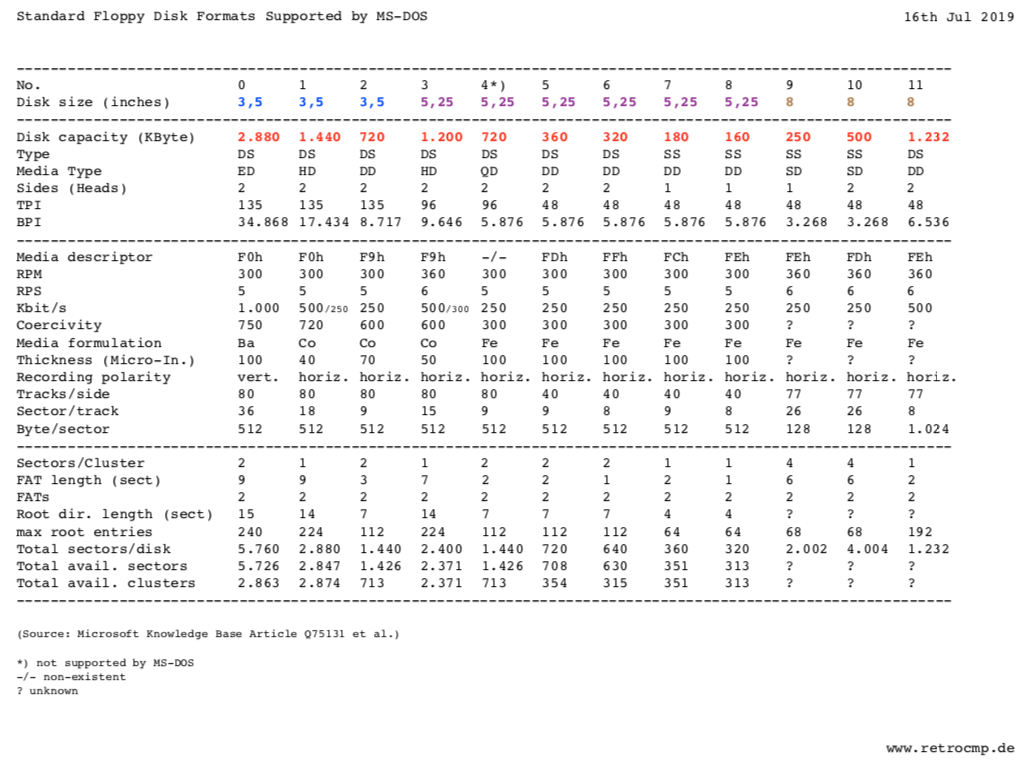

Basically the Megamate 2.8 can process three formats: 720 KByte, 1.4 MByte and 2.8 MByte. The first two are the classic 3.5 inch floppy disk formats known from MS/PC-DOS computers. New is the 2.8 MByte format.
But watch out! The 2.8 MByte format of the CompatiCard IV is not the official MS-DOS standard format. According to the User's Guide 'is this format unique to CC4DRV and will not be readable with other software packages. These formats were included for people who wish to use the full capacity of the drive'. I can't test this because I don't have another 2.8 MByte drive. The official media descriptor (MD) for the ED format is F0h. The Megamate 2.8 MD is FFh!
Attention when formatting floppy disks! The Megamate 2.8 is 'blind' to the density indicator when formatting. You must make sure that the diskette type (DD, HD, ED) and format type match. Basically you can format a DD (720) diskette in ED (2.8) format with the Megamate 2.8. No error message will be issued. I tried it out. You can then also easily copy a total of 2.8 MBytes of data to a disk formatted in this way. But how long the data can actually be read is questionable. It is not for nothing that the magnetic data carriers have different coating materials and different thicknesses.
According to Chuck(G) and Al Kossow from VCF, HD disks can be written with so-called perpendicular recording, but they are not so stable in the long run because the surface coating is too thin and the cobalt material is not optimal. The barium coating of the ED diskettes is thicker and optimized for perpendicular recording.
TEAC FD-235J 3653-U

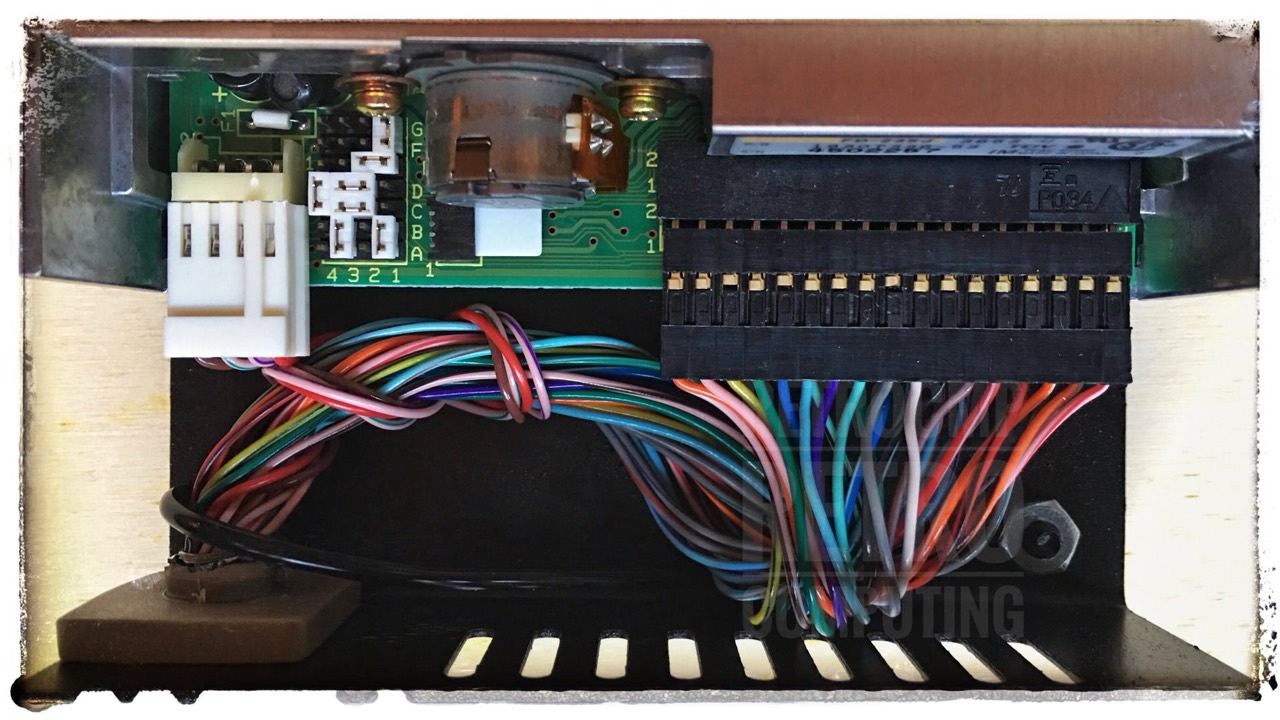

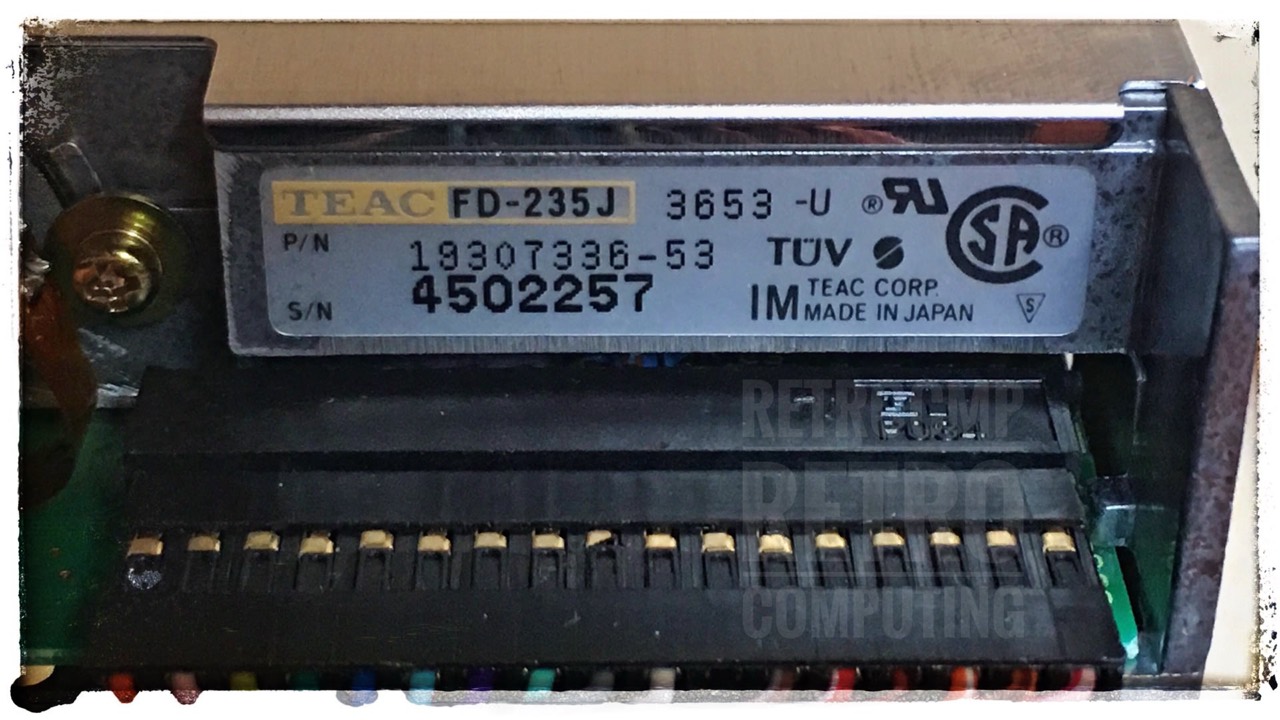

Internally a TEAC FD-235J 3653-U is used in my Megamate 2.8.
- Megamate 2.8 user's guide (20 MByte)
- ROM BIOS CompatiCard IV, Version 1.05: Download (8 KByte) / The original chip is a "S27C64A". I tested the BIOS with an ATMEL AT28C64B (EEPROM); works fine.
